05.04.2019

New compact 25m crawler from Omme Lift

New COMPACT 25 m crawler from Omme Lift A/S to premiere at Bauma 2019!

25.00 RXJ has a working height of 25m (ft. 82’), and a great outreach of up to 12.5m (ft. 41’). A dual parallelogram articulating riser gives 7m (ft. 23') up-and-over free clearance and provides vertical wall tracking. This provides the user with a variety of options for both indoor and outdoor usage.

Would you like to hear more about the new 25.00 RXJ and whether it is the right choice for you? Contact us here

Compact dimensions

25.00 RXJ has a transport length of only 6.91m (ft. 22’7’’), which can be further reduced to only 6.16m(ft. 20’3’’) without the detachable basket. The transport width can be reduced to only 0.89m(ft. 35’’). The compact dimensions give exceptional manoeuvrability in confined spaces. Simple and intuitive controls make operator instruction easy and work quicker. A dual parallelogram articulating riser gives 7m (ft 23') up-and-over free clearance and provides vertical wall tracking.



True hybrid

The standard version is a true diesel/battery hybrid with engine generated re-charge. Battery power means no direct mains power annoyance with trailing power cables and voltage drop. The lift is therefore equally efficient in indoor and in outdoor environments. No noise – no fumes – no pollution.



Set-up abilities

Stabilizers allow the machine to be set-up on uneven levels up to 40% (21.8°). Simple and intuitive controls make operator instruction easy and work quicker.



Low ground pressure

The crawler chassis is designed for powerful travel in the terrain but also to disperse the machine's weight widely. Low ground pressure is important when operating on more sensitive surfaces such as tiles, marble, flagged foot paths, wooden floorings or if the platform is craned into multistorey buildings where high reach is required but low weight a necessity.

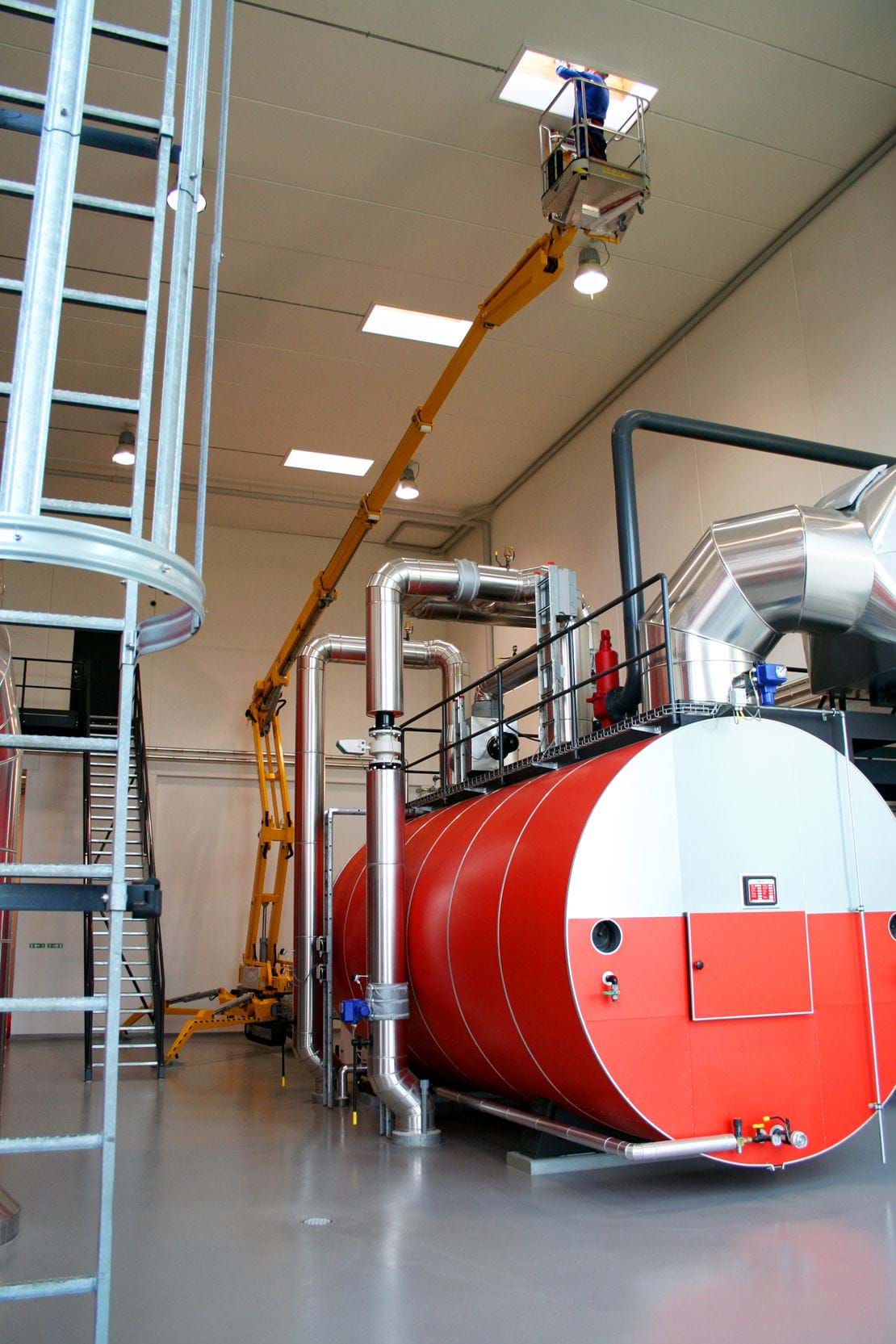

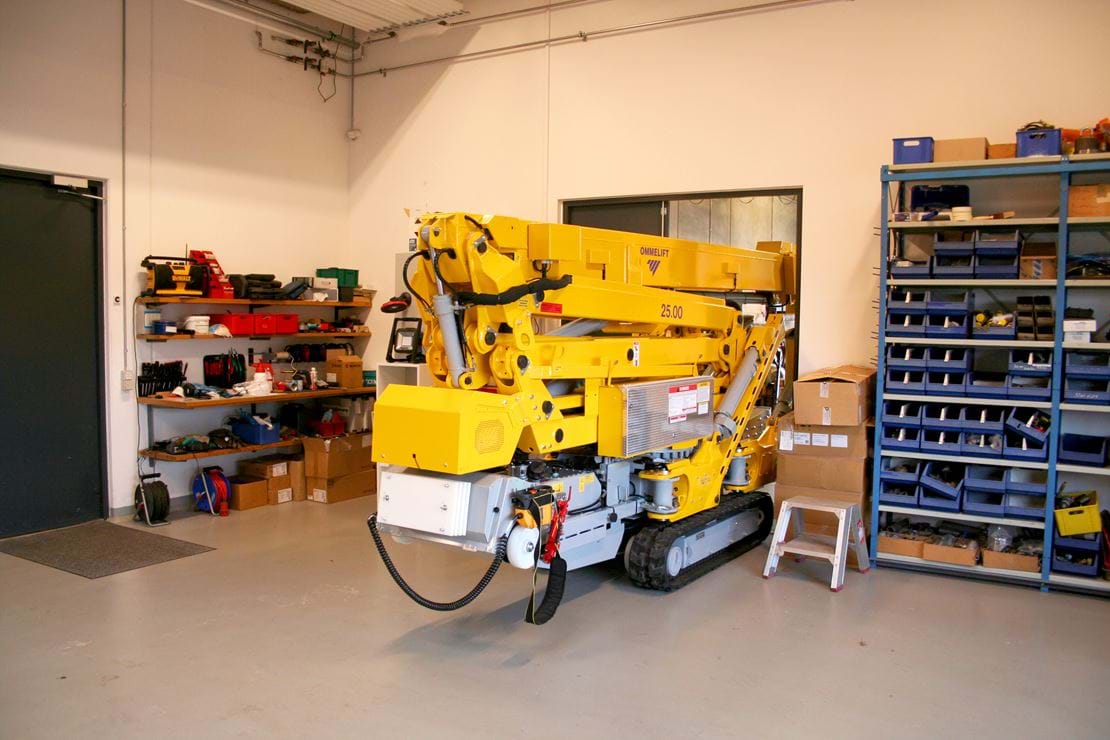

Ommelift 25.00 RXJ - indoor use

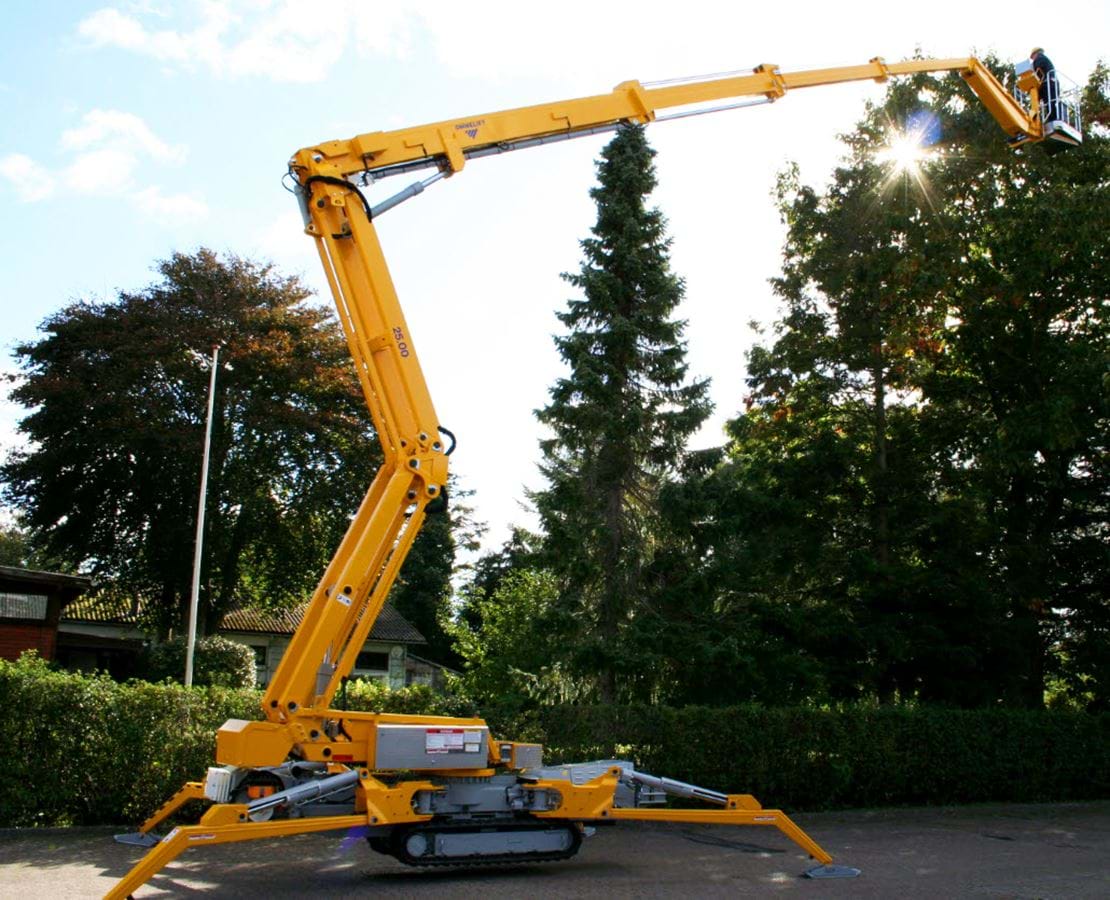

Ommelift 25.00 RXJ - outdoor use


The compact dimensions give exceptional manoeuvrability in confined spaces.
