Ommelift Type 18.40 RXJ

18.40 RXJ has a working height of 18.25 m, and a great outreach of 10.50 m with a 200 kg basket load. This provides the user with a variety of options for both indoor and outdoor usage.



True hybrid

True hybrid Engine and battery power with automatic re-charge of the battery pack when the engine is on. Continuous re-charge is also possible with an on-board charger during lift operation and without interruptions. Battery power means no direct mains power annoyance with trailing power cables and voltage drop.

Battery power No fume operation with an extended large battery capacity. In order to accommodate extreme and long-term usage a back-up transformer for direct mains connection is included.

Compact dimensions

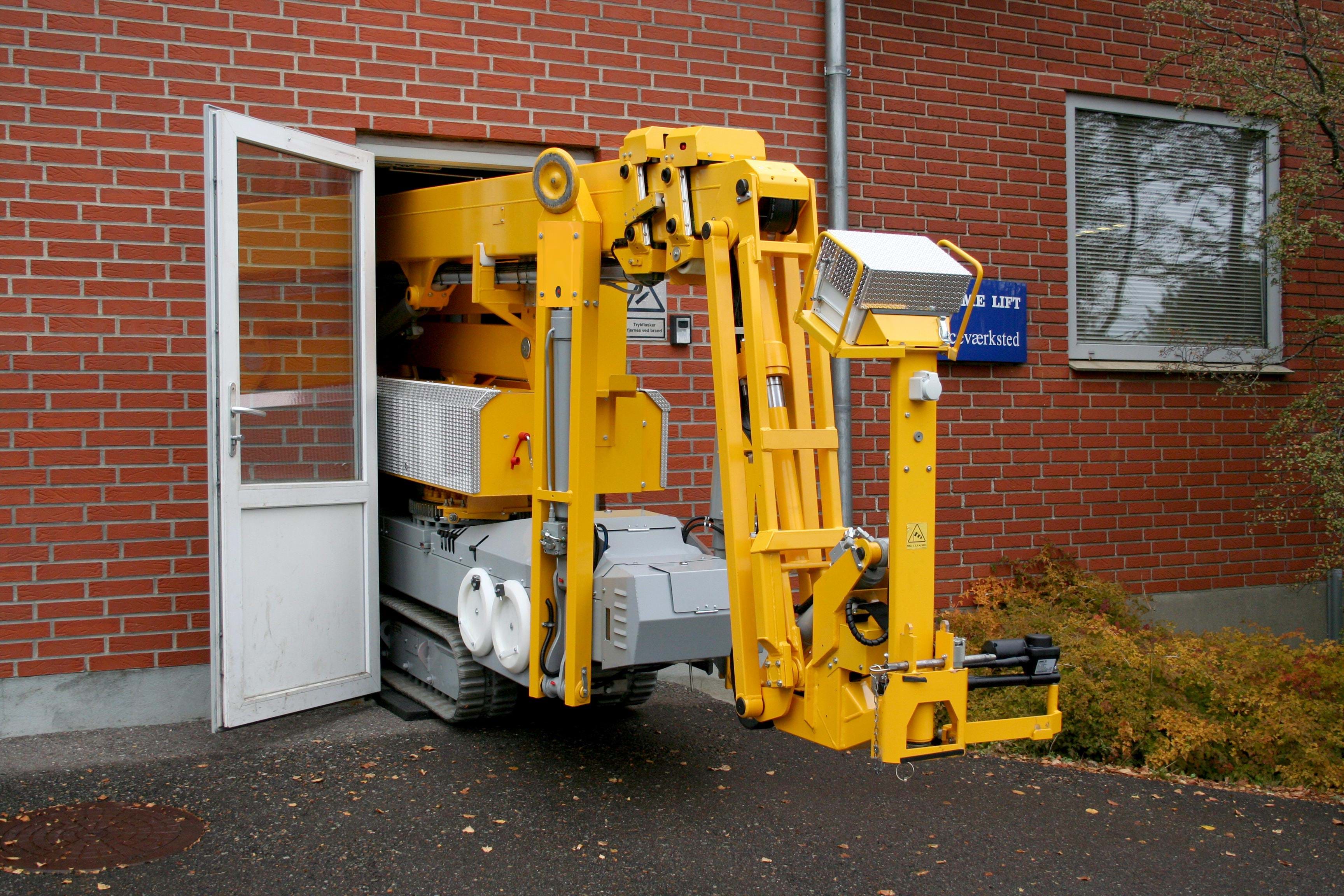

18.40 RXJ has a transport length of only 4.85 m, a transport width of 0.79 m and a transport height of 1.99 m. The compact dimensions give exceptional manoeuvrability in confined spaces. Simple and intuitive controls make operator instruction easy and work quicker.

With an articulating riser system working in a straight vertical line, 18.40 RXJ provides maximum up and over outreach.

Flush basket mount, no bulky fixture underneath to inflict damage on rooftops or other items. Fixed basket and turret controls. The lift will not be grounded due failure in 1-only remote controls box.
