OMME MINI 12 E with big features

A small lift with big features

The new trailer lift from OMME LIFT in Denmark, type Mini 12, is not only compact and easy to operate. It also has a very large working envelope and weighing only 1200 kg it is towable by most cars and smaller vans.The Mini 12 has an excellent unrestricted outreach of almost 8 m. With the axles retracted, the overall width of the machine is only 0.98 m which enables the machine to pass through narrow openings. Other standard features include hydraulic stabilisers, fly jib and pedestrian drive.

The telescopic boom ensures quick up and down movements and enables full outreach to be achieved even at low level. The Mini 12’s tail swing falls within the area of the outrigger footprint so the operator does not need to worry about slewing the knuckle into fixed structures around the set up area.

Jib:
The 1.9 m fly jib provides access up and over roof edges or other difficult to reach areas. The jib also lifts the basket up behind obstacles. Generally, the fly jib means more convenient and precise manoeuvrability.

Self-drive:
The self-propelled pedestrian drive system makes it easy for one person to manoeuvre the Mini 12 not only on tarmac or paving but also around gardens, on lawns, pebbles or other softer surfaces which are almost impossible for one person to push a traditional machine over.

Power Source:
The Mini 12 is supplied with 230V mains operation or a 24V battery pack, which is unique for this compact type of telescopic lift.

The new max feature Mini 12 from Omme Lift will be ready for delivery soon.

Main technical data:
Max. Working height 11.9 m
Max. outreach 7.8 m
S.W.L 125 kg, unrestricted
Transit height 1.95 m
Transit width 1.50/0.98 m
Transit length 5.99 m
Standard weight 1200 kg

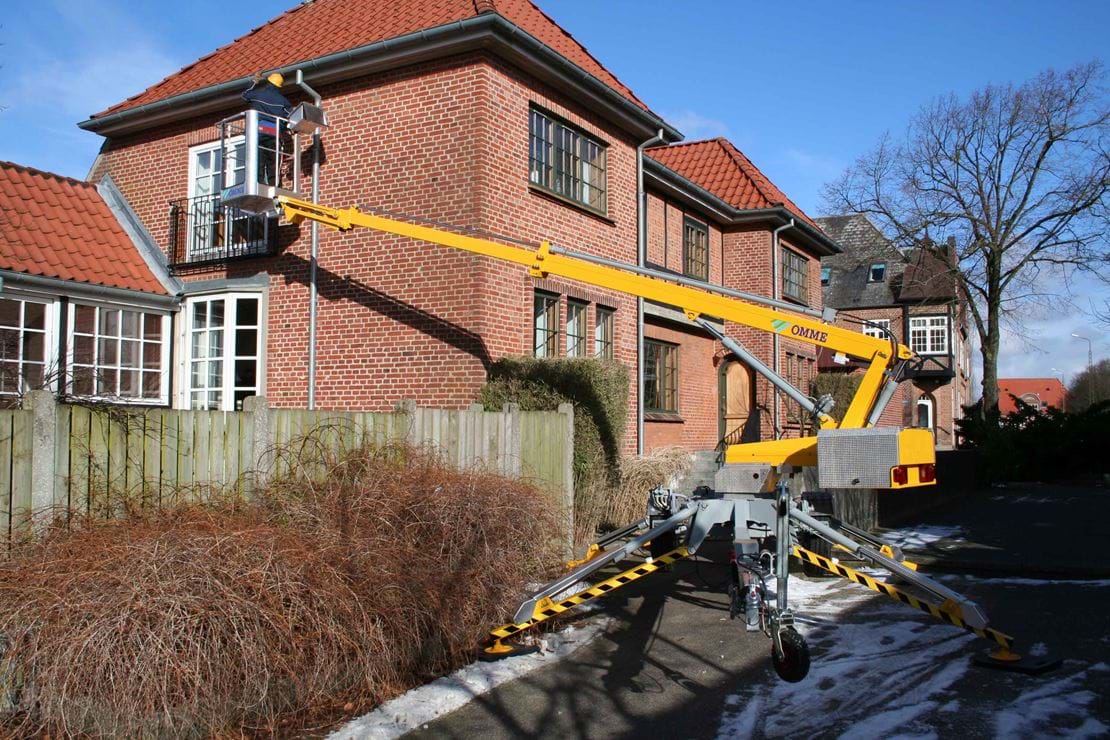

OMME MINI 12 E TELESKOPLIFT.jpg
