01.05.2005

OMME 19.3 metre crawler type articulating/telescopic

Crawl light and compact - Way out!

Access platform users are often in the lack of outreach when working up and over buildings or other obstacles. This problem can now be solved with the new crawler lift from OMME LIFT.

Compact and versatile - that is the best description of the new crawler lift. The lift has a working height of 19 metres and provides an exceptional long up and over outreach. The basket capacity takes either two persons, or one person with tools and materials to 10 metre plus.

The transport length is only 5.91 metres, the width is 1.10 metres and the height is 2.07 metres. A zero tail swing articulating riser makes the max. outreach achievable with a free clearance of more than 6 metres.

Gradability is 35%, equivalent to 19.3°. Combined with the strong, non-skid crawler belts the platform is indeed cross country access. The all-terrain facility is not only for park and woodland areas, but also for working in town centres when it is necessary to overcome kerbs or other obstacles.

The crawler chassis provides great strength and is also dispersing the allready low weight widely. This is important when operating on more sensitive surfaces such as floortiles, flagged foot paths, wooden floorings, or if the platform is craned into new storey buildings where the horizontal divisions require low weight.

The platform is delivered with a bi-energy power pack (battery and diesel). This combination is increasing the level of utilization as it makes the platform operational in both indoor and outdoor situations. Furthermore, the bi-energy pack allows operation in areas where fume or noise pollution is regulated.

The flexible stabilizers allow deployment on large uneven levels up to 40% like hilly ground, steps or landings. In narrow and inconvenient places it is possible to adjust the stabilizer spread according to the required working envelope.

The Omme 1930 RBD has a max. working height of 19.1 metres and the max. outreach is 10.2 metres. Total weight 3260 kg.

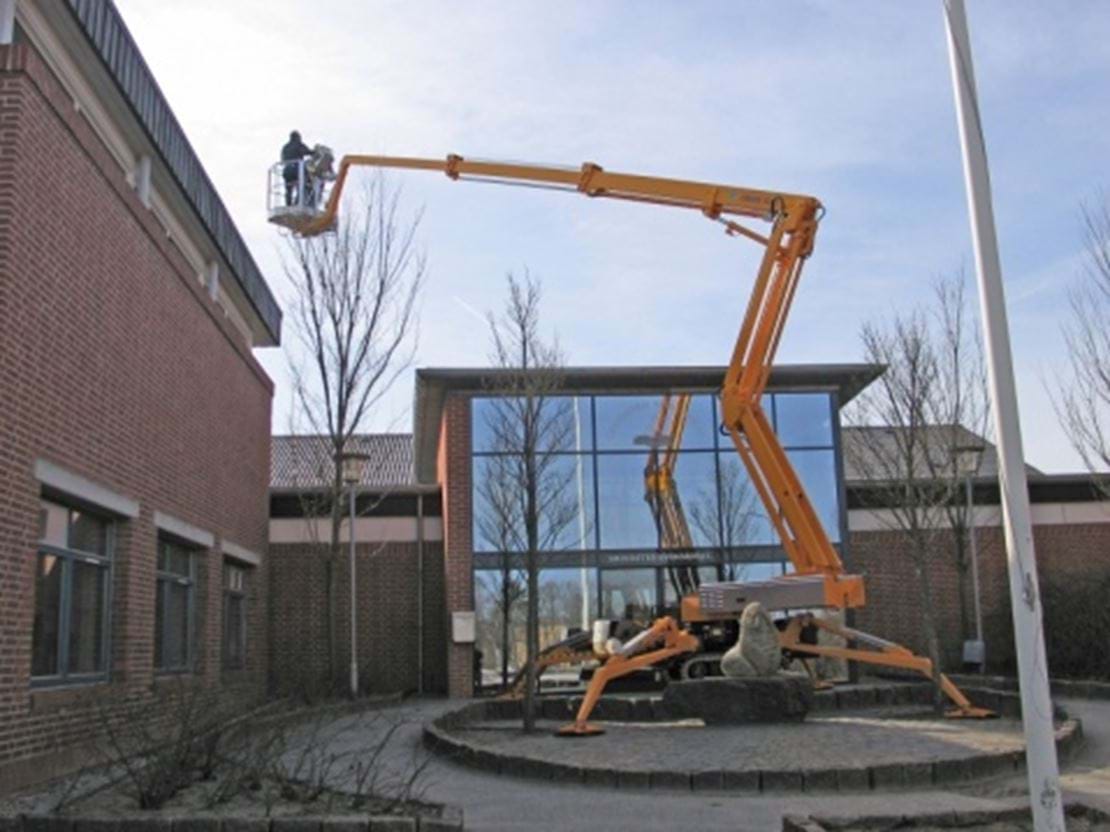

OMME LIFT TYPE 1930 R.jpg
