Big features - Light and easy

Mini 15 EXJ

Big features - Light and easy

Mini 15 EXJ

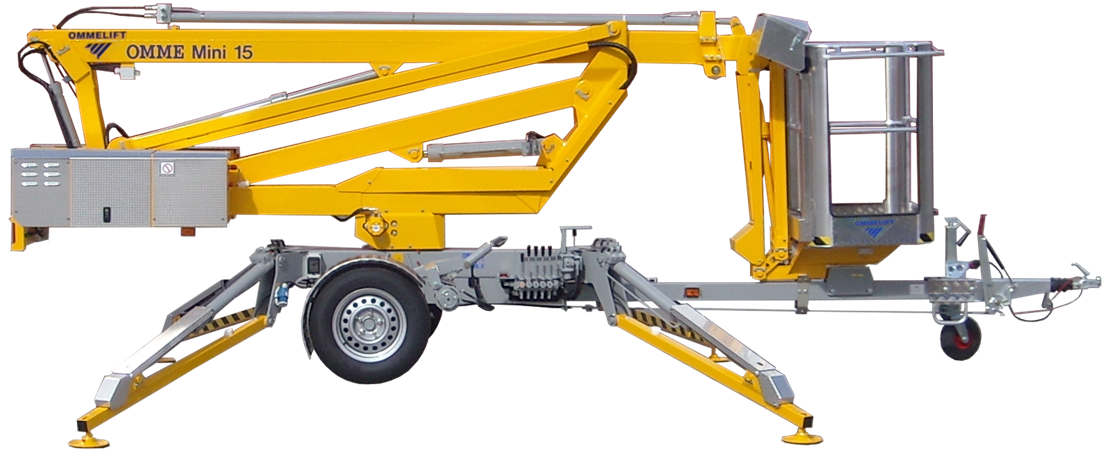

Type Mini 15 EXJ is powered by 230V mains and is especially suitable where continuous operation is required. Type Mini 15 EXBJ is also powered by a heavy duty 24V/139 Ah battery pack with built-in charger capable of charging the batteries whilst the platform is in use. Operation is also possible independently of mains connection.

Weighing only 1500 kg it is towable by cars and smaller vans.

With the axles retracted, the overall width is down to 1.05 m which enables the lift to pass through narrow openings. Standard features also include hydraulic stabilizers, tool tray and power outlet in the basket.

Easy to operate controls are available in the basket and at base. The high and low speed facility gives steady and smooth movements.

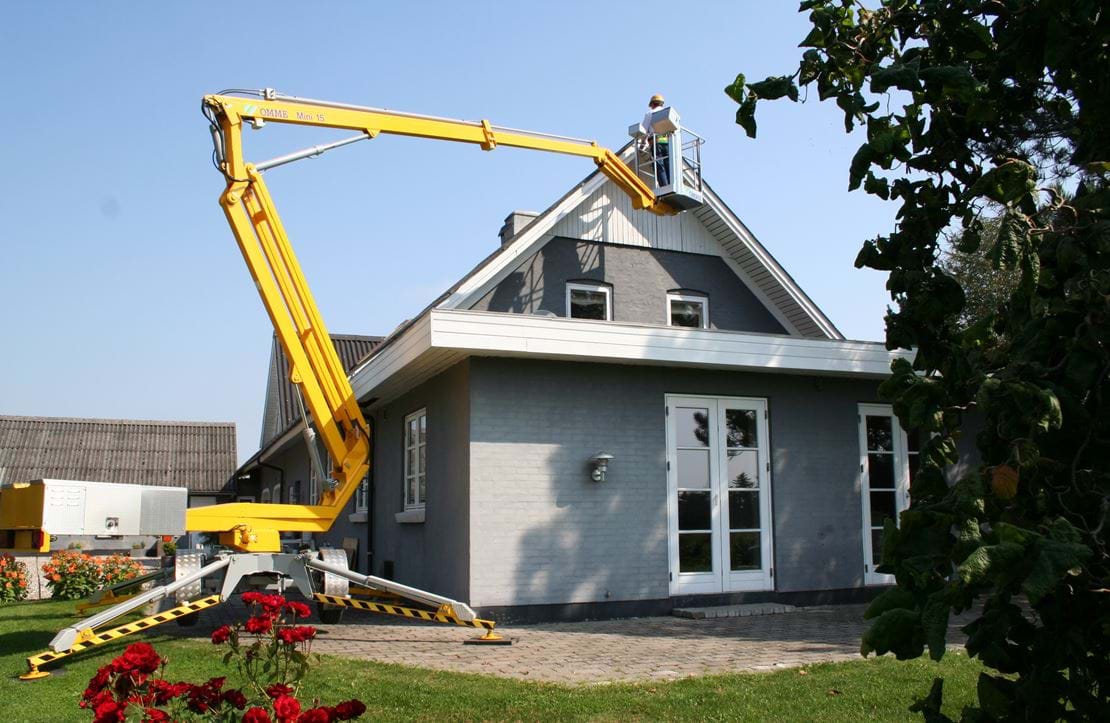

The fly jib provides access up and over roof edges or other difficult to reach areas. The jib also lifts the basket up behind obstacles. Generally, the fly jib means more convenient and precise manoeuvrability.

Equipped with an unfolding scissor system giving the lift an increased up and over outreach over high obstacles.

Contact form

In order to respond to your request we need your contact information. Please complete the fields below.

Thank you for your request!
We appreciate you contacting us about our ommelifts. One of our colleagues will get back to you shortly. Have a great day!

Type

Mini 15 EXJ

Mini 15 EXBJ

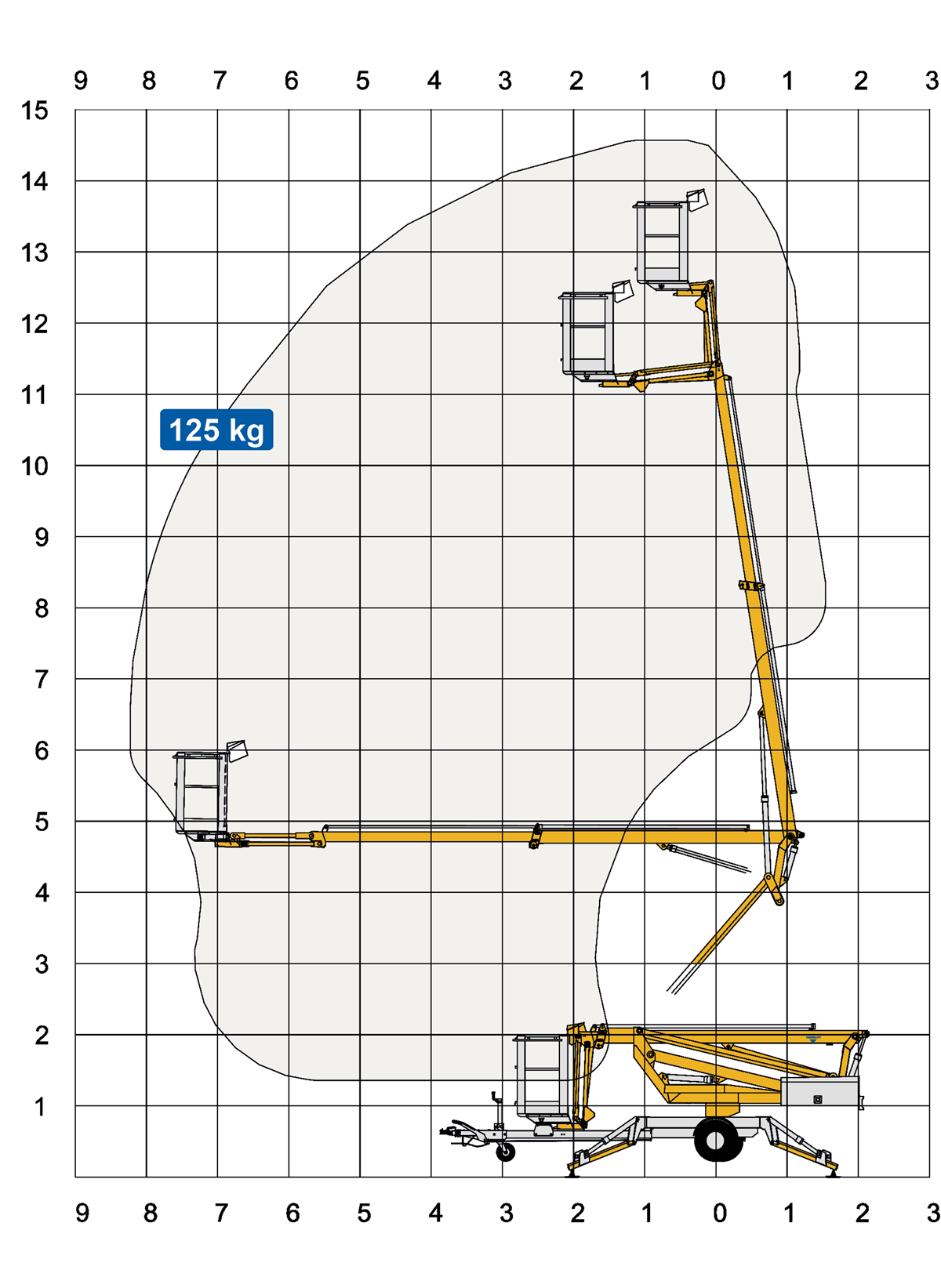

Max. working height

14.6 m 47'11"

Max. outreach

8.3 m 27'3''

Max. basket load

125 kg 276 lbs

Basket size

0.8 5x 0.7 x 1.1 m 2'9'' x 2'4'' x 3'7''

0.85 x 0.7 x 1.1 m 2'9'' x 2'4'' x 3'7''

Basket rotation ±

- -

Turret rotation ±

355° 355°

Travelling length

6.05 m 19'10''

Travelling height

1.94 m 6'4''

Travelling width

1.50 / 1.05 m 4'11'' / 3'5''

Operational width

3.63 m 11'11''

230 V / 10 A 230 V / 10 A

- -

Battery

- -

24 V / 139 Ah / 5h 24 V / 139 Ah / 5h

Diesel engine

- -

230 V / 30 A 230 V / 30 A

Total weight

1500 kg 3307 lbs

Metric US

Brochure Templates

Download

Box in basket

Easy-to-use operation panel in basket. Easy-to-use joysticks for lift functions. Emergency stop and button for high/low speed.
Box in tower

Easy-to-use operation panel in tower. Easy-to-use joysticks for lift functions. Emergency stop and button for high/low speed. Key reverser for function select. Indicators for stabilizer support.
Controls for stabilizers

Numbered operational handles for stabilizers. Spirit level for control of horizontal position.
Safety indicators

Indicators for stabilizer support. At support of all four stabilizers the red LEDs turn off and the green LED turns on. The lift is now ready for operation.
High and low speed

The lift has two speeds. If extra slow movements are required, then start and stop in low speed.
Basket

The lift is as standard feature equipped with a one-man open basket made of aluminium.The basket is mounted on a fixed angle boom. This, together with the basket, ensure a relatively high up and over outreach
Anchor point for safety harness

An anchor point for safety harness is mounted in the bottom of the basket. This is a legal requirement in many countries.
Cover and tool box

As standard feature the lift is delivered with a protection cover over the operation panel in the basket. Moreover the basket is equipped with a small tool box.
Box for manual

OMMELIFT can supply a protection box for lift manuals.
230 V power outlet

A 230 V power outlet is placed in the basket for connection of tools, when the lift has been connected to 230 V mains voltage. The connection is protected with a 10 A fuse.
230 V socket

A connection socket for connection of 230 V mains voltage is placed at the chassis of the lift. In connection with the 230 V inlet the lift is equipped with a relay for erroneous current, protecting the lift against fault voltage. A 15 m extension cord is delivered with the lift.

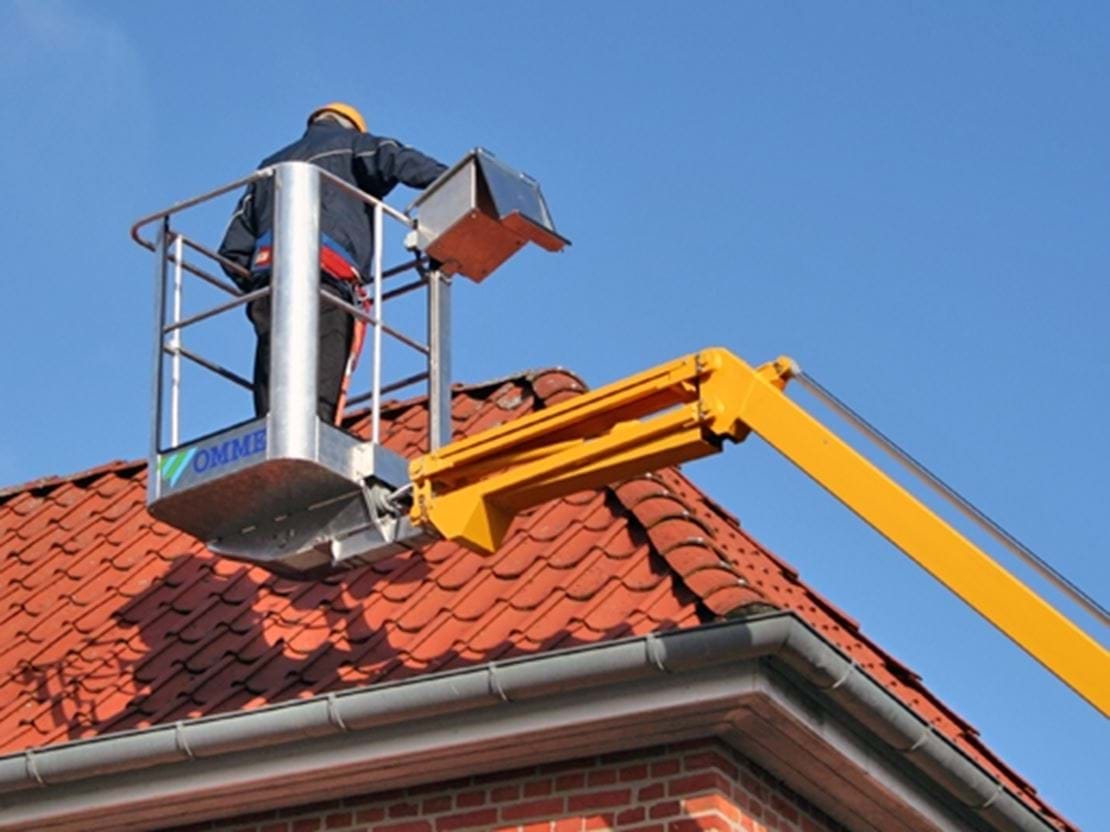

Fly jib

The fly jib provides access up and over roof edges or other difficult to reach areas. The jib also lifts the basket up behind obstacles. Generally the fly jib means more convenient and precise manoeuvrability.
Master-slave system

The lift is equipped with a hydraulic master-slave system, enabling the basket always to be held in horizontal position by means of pleasant, sliding movements.

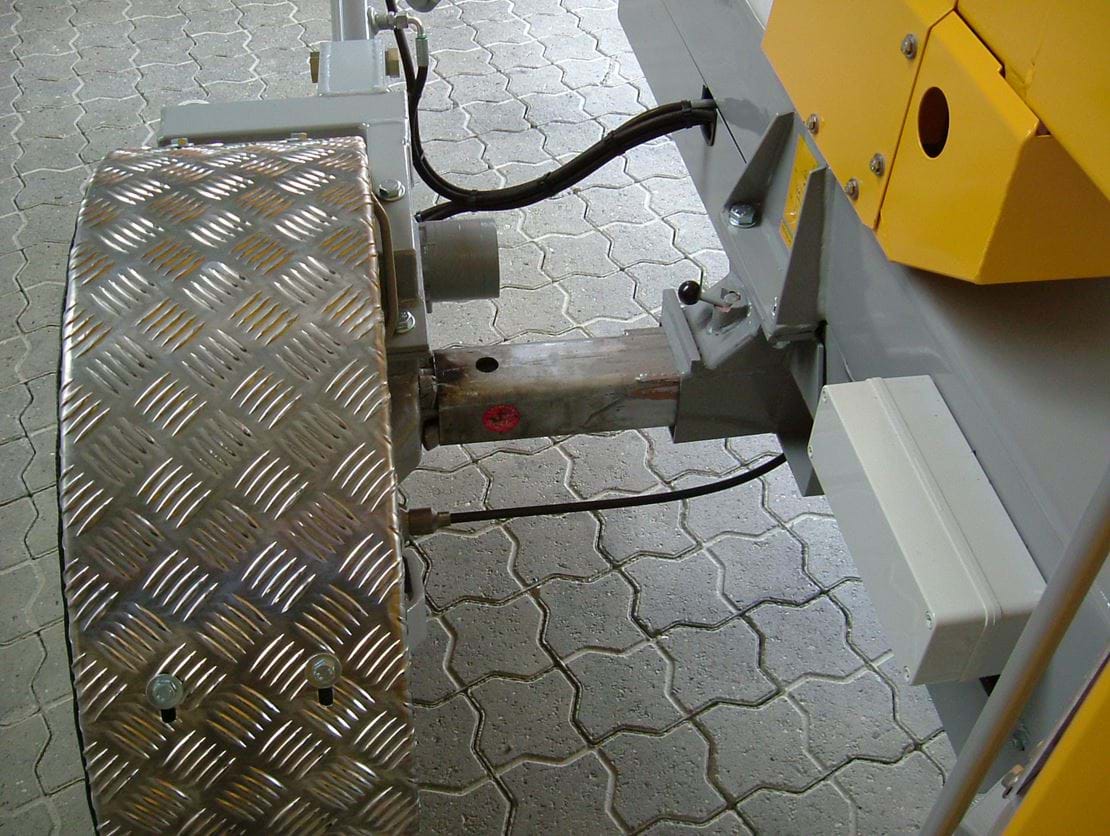

Adjustable axle

The lift is, as standard feature, equipped with an adjustable axle for easy adjustment of the axle from 1.5 m to 1.05 m.
Narrow door

By adjustment of the transport width to 1.05 m the lift can pass through narrow passages as e.g. a door.
Propulsion

The lift is equipped with electro-hydraulic propulsion with hydraulic coupling. When equipped with propulsion the platform can propel itself around the relative plane work site. The propulsion is operated by means of two hydraulic valves, each controlling one side of the propulsion.
Controls for propulsion

Propulsion is operated by means of two hydraulic valves, each controlling one side of the propulsion
Brakes and jockey wheel

Apart from the overrunning brake the lift is equipped with a reliable parking brake. A strong jockey wheel facilitates the coupling/uncoupling of the lift to the towing vehicle.
Towed after car

The lift can be towed after most cars. The transport width must always be 1.5 m. The lift is type approved for driving on main roads in e.g. Denmark and Germany.

Flash lights

The lift can be supplied with flash lights on the four stabilizers. If further warning is requested, a flash light can also be mounted on the rear edge of the telescopic boom.
Special colour

For an additional price the lift can according to agreement be painted in other RAL colours. For instance red and white as shown in the picture.
http://www.ralcolor.com
Hour meter

An hour meter states, how much the eletric motor has eventually been running. To be used for service purpose.
Spotlight in basket

All Omme lifts with battery operation can be equipped with a 55 W spotlight in the basket.
Hatz diesel engine with oil pump

The lift can be equipped with a Hatz diesel engine for alternative continuous operation. On specific engine types start and stop of the engine can also take place from the basket.
