A small lift with big features

Mini 12 EJ

A small lift with big features

Mini 12 EJ

Mini 12 EJ is powered by 230V mains and is especially suitable where continuous operation is required.

Mini 12 EBJ is powered by a heavy duty 24V/139 Ah battery pack with built-in charger capable of charging the batteries whilst the platform is in use. Operation is also possible independently of mains connection.

Adjustable travelling width:
With the axles retracted, the overall width is down to 0.99 m which enables the lift to pass through narrow openings.
Standard features also include hydraulic stabilizers, tool tray and power outlet in the basket.

Fly jib:
The fly jib provides access up and over roof edges or other difficult to reach areas. The jib also lifts the basket up behind obstacles. Generally, the fly jib means more convenient and precise maneuverability. The telescopic boom ensures quick up and down movements and enables full unrestricted outreach to be achieved even at low level. Furthermore, the tail swing falls within the area of the outrigger footprint so the operator does not need to worry about slewing the knuckle into fixed structures around the set up area.

Contact form

In order to respond to your request we need your contact information. Please complete the fields below.

Thank you for your request!
We appreciate you contacting us about our ommelifts. One of our colleagues will get back to you shortly. Have a great day!

Type

Mini 12 EJ

Mini 12 EBJ

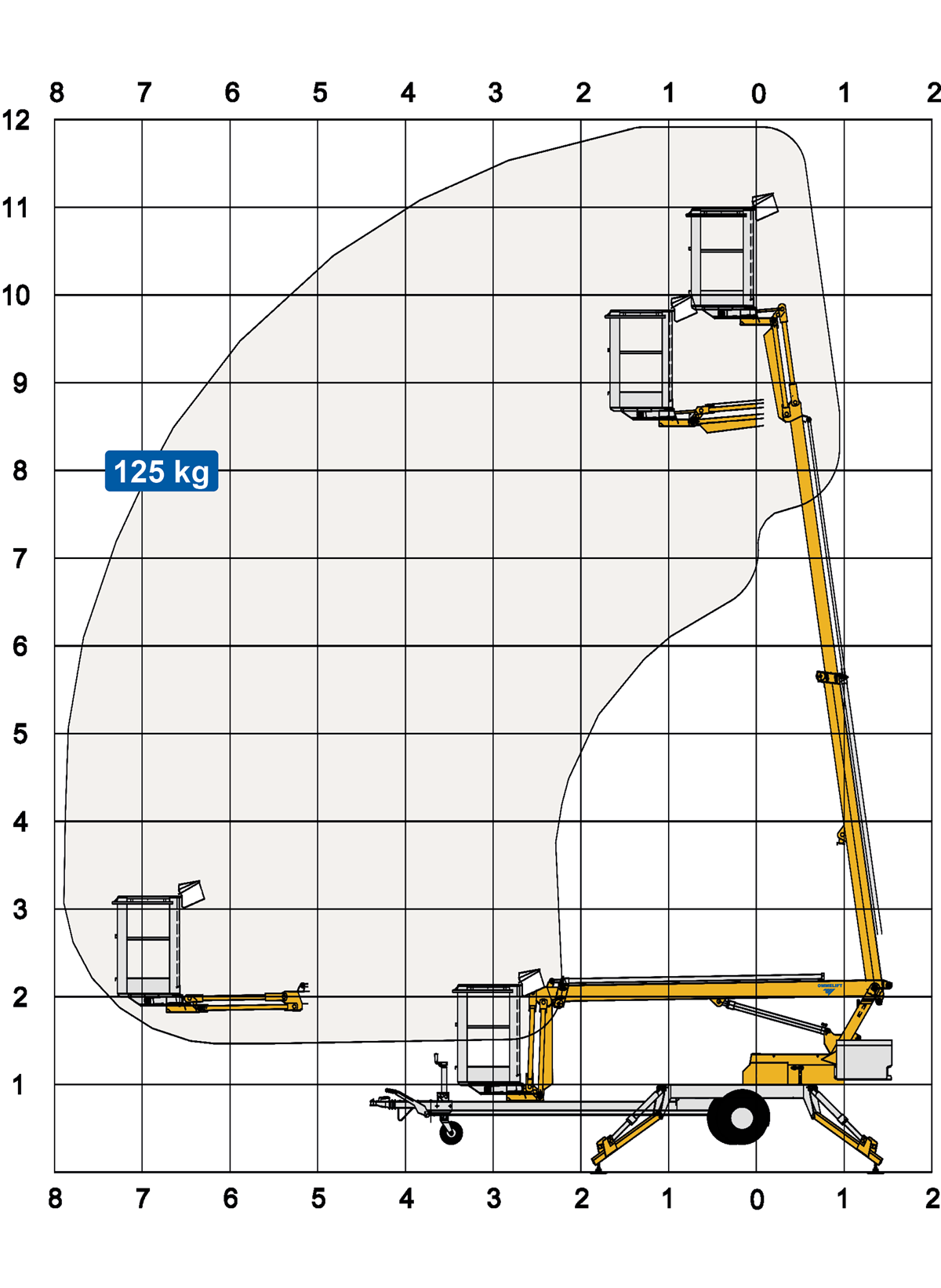

Max. working height

11.9 m 39'

Max. outreach

7.6 m 25'9''

Max. basket load

125 kg 276 lbs

Basket size

0.85 x 0.7 x 1.1 m 2'9'' x 2'4'' x 3'7''

Basket rotation ±

- -

Turret rotation ±

355° 355°

Travelling length

6.03 m 19'9''

Travelling height

1.93 m 6'4''

Travelling width

1.5 / 0.99 m 4'11'' / 3'2''

Operational width

3.60 m 11'10''

230 V / 10 A 230 V / 10 A

- -

Battery

230 V / 30 A 230 V / 30 A

24 V / 139 Ah / 5h 24 V / 139 Ah / 5h

Charger

230 V / 30 A 230 V / 30 A

- -

Total weight

1260 kg 2778 lbs

Metric US

Brochure Templates

Download

Box in basket

Easy-to-use operation panel in basket. Easy-to-use joysticks for lift functions. Emergency stop and button for high/low speed.
Box in tower

Easy-to-use operation panel in tower. Easy-to-use knobs for lift functions. Emergency stop and knob for high/low speed. Key reverser for function select. Indicators for support of stabilizers.
Cover for box in basket

As an option the lift can be delivered with a protection cover over the operation panel in the basket.
Box for manual

OMMELIFT can supply a protection box for lift manuals.
Controls for stabilizers

Numbered operational handles for stabilizers. Spirit level for control of horizontal position . 230 V cable connection and relay for erroneous curren.
Safety indicators

Indicators for stabilizer support. At support of all four stabilizers the red LEDs turn off and the green LED turns on. The lift is now ready for operation.
High and low speed

The lift has two speeds. If extra slow movements are required, then start and stop in low speed.
Basket

The lift is as standard feature equipped with a one-man open basket made of aluminium.The basket is mounted on a fixed angle boom. This, together with the basket, ensure a relatively high up and over outreach.
Anchor points for safety harness

An anchor point for safety harness is mounted in the bottom of the basket. This is a legal requirement in many countries.
Cover and tool box

As standard feature the lift is delivered with a protection cover over the operation panel in the basket. Moreover the basket is equipped with a small tool box.
230 V power outlet

A 230 V power outlet is placed in the basket for connection of tools, when the lift has been connected to 230 V mains voltage. The connection is protected with a 10 A fuse.
230 V socket

A connection socket for connection of 230 V mains voltage is placed at the chassis of the lift. In connection with the 230 V inlet the lift is equipped with a relay for erroneous current, protecting the lift against fault voltage. A 15 m extension cord is delivered with the lift.
Fly jib

The fly jib provides access up and over roof edges or other difficult to reach areas. The jib also lifts the basket up behind obstacles. Generally the fly jib means more convenient and precise manoeuvrability.
Master-slavesystem

The lift is equipped with a hydraulic master-slave system, enabling the basket always to be held in horizontal position by means of pleasant, sliding movements.
Adjustable axle

The lift is, as standard feature, equipped with an adjustable axle for easy adjustment of the axle from 1.5 m to 0.99 m.
Narrow door

By adjustment of the transport width to 0.99 m the lift can pass through narrow passages as e.g. a door.
Brakes and jockey wheel

Apart from the overrunning brake the lift is equipped with a reliable parking brake. A strong jockey wheel facilitates the coupling/uncoupling of the lift to the towing vehicle.
Transport lock

The lift is equipped with a transport lock, also ensuring that the lift is always placed correctly on the chassis
Towed after car

The lift can be towed after most cars. The transport width must always be 1.5 m. The lift is type approved for driving on main roads in e.g. Denmark and Germany.

Flash lights

The lift can be supplied with flash lights on the four stabilizers. If further warning is requested, a flash light can also be mounted on the rear edge of the telescopic boom.
Controls for propulsion

Propulsion is operated by means of two hydraulic valves each controlling one side of the propulsion.
Propulsion

The lift can be equipped with electro-hydraulic propulsion with manual coupling. When equipped with propulsion the platform can propel itself around the relative plane work site. The propulsion is operated by means of two hydraulic valves each controlling one side of the propulsion.
Plates for stabilizer

For lift set up on soft ground OMME LIFT offers 4 pcs. of supporting rubber plates. Holders for placing the plates on the lift follow together with the plates. The dimensions of the plates are 400x400 mm.
Spotlight in basket

All Omme lifts with battery operation can be equipped with a 55 W spotlight in the basket.
Specialfarve

For an additional price the lift can according to agreement be painted in other RAL colours. For instance red and white as shown in the picture
