Robust and powerful

2300 EX

Robust and powerful

2300 EX

Robust and powerful
Compact transport dimensions
Easy to instruct end user
2300 EX is powered by an electric motor, connected to 230 V mains and is especially suitable where continuous operation is required.

2300 EXB is powered by a heavy duty battery pack, in total 24V/200 Ah/5h. Operation is possible independently of 230 V mains connection.

The low centre of gravity provides a secure transport after the towing vehicle.

The 2300 EX platforms are mounted with hydraulic propulsion, turnable basket and hydraulic stabilizers. When equipped with hydraulic propulsion the platform can propel itself around the work site. Operation from a special platform, giving a complete overview. The turnable basket makes it possible for 2 persons to operate parallel with e.g. a facade.

The 2300 EX platforms are equipped with an unfolding scissor system, giving the lift an increased up and over outreach over high obstacles. When operating the scissor system up and down the basket will follow a vertical line. Furthermore the lift has no tail swing at rotation. Electric wiring to the basket is protected inside the telescopic boom. The telescopic cylinder is protected under the boom.

The 2300 EX platforms are fitted with straightforward control, in the basket and at ground level. The hydraulic levers for the stabilizers are placed centrally on the chassis. The proportional controls ensure steady and smooth movements.

Contact form

In order to respond to your request we need your contact information. Please complete the fields below.

Thank you for your request!
We appreciate you contacting us about our ommelifts. One of our colleagues will get back to you shortly. Have a great day!

Type

2300 EX

2300 EXB

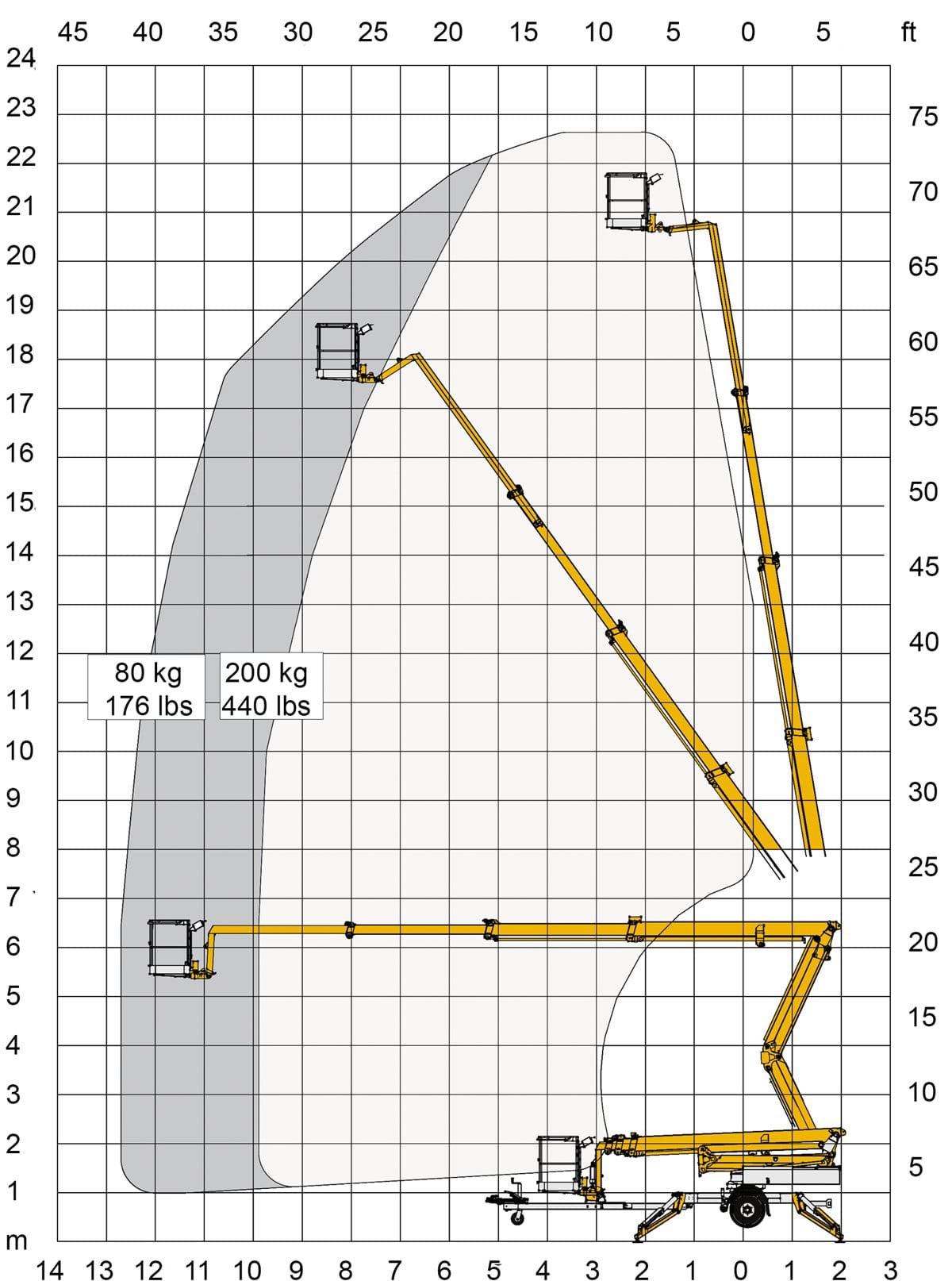

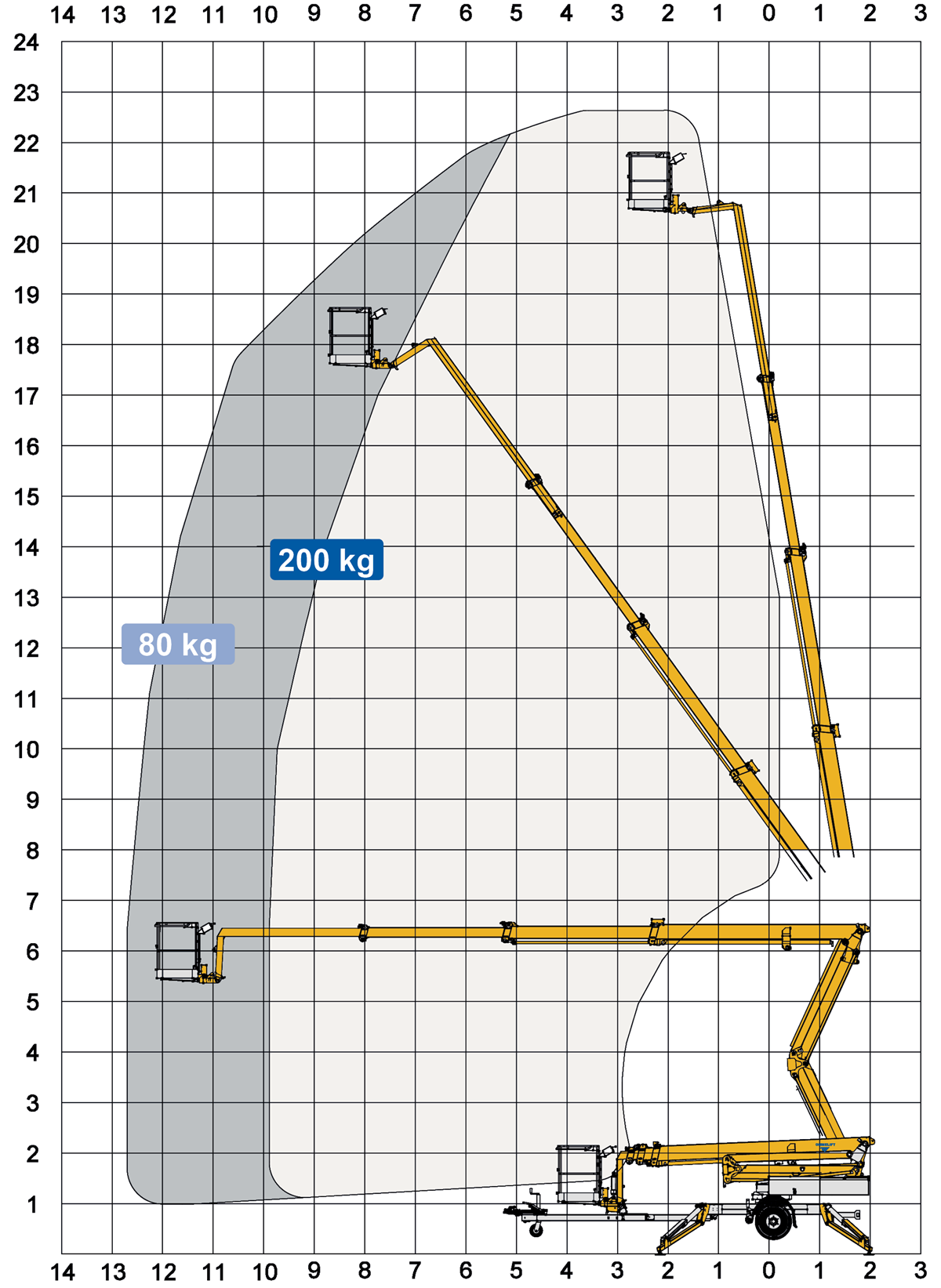

Max. working height

22.6 m 74'2"

Max. outreach

12.7 m 41'8

Max. basket load

200 kg 441 lbs

Basket size

1.25 x 0.8 x 1.1 m 4’1” x 2’7” x 3’7”

Basket rotation ±

41° 41°

Turret rotation ±

400° 400°

Travelling length

7.32 m 24'3"

Travelling height

1.99 m 6'6''

Travelling width

1.70 m 5'7''

Operational width

4.21 m 13'10''

230V / 16A 230V / 16A

- -

Battery

- -

24V / 200Ah / 5h 24V / 200Ah / 5h

Charger

- -

24V / 30A 24V / 30A

Total weight

3150 kg 6945 lbs

Metric US

Brochue Templates

Download

Basket

The lift is equipped with a two-men open basket made of aluminium. The basket is electrically turnable ± 41°, enabling two persons to work simultaneously, e.g. along a wall. The basket is mounted on a fixed angle boom. This, together with the basket, ensure a relatively high up and over outreach.
230 V power outlet

A 230 V power outlet is placed in the basket for connection of tools, when the lift has been connected to 230 V mains voltage. The connection is protected with a 10 A fuse.
Anchor points for safety harness

Two anchor points for safety harness are mounted in the bottom of the basket. This is a legal requirement in many countries.
Tool boxes

The basket is equipped with tool boxes in two corners of the basket.
Box in basket

Easy-to-use operation panel in basket. Easy-to-use joysticks for lift functions. Emergency stop and knob for proportional controls.
Box in tower

Easy-to-use operation panel in tower. Easy-to-use joysticks for lift functions. Emergency stop and knob for proportional controls. Key reverser for function select. Indicators for stabilizer support.

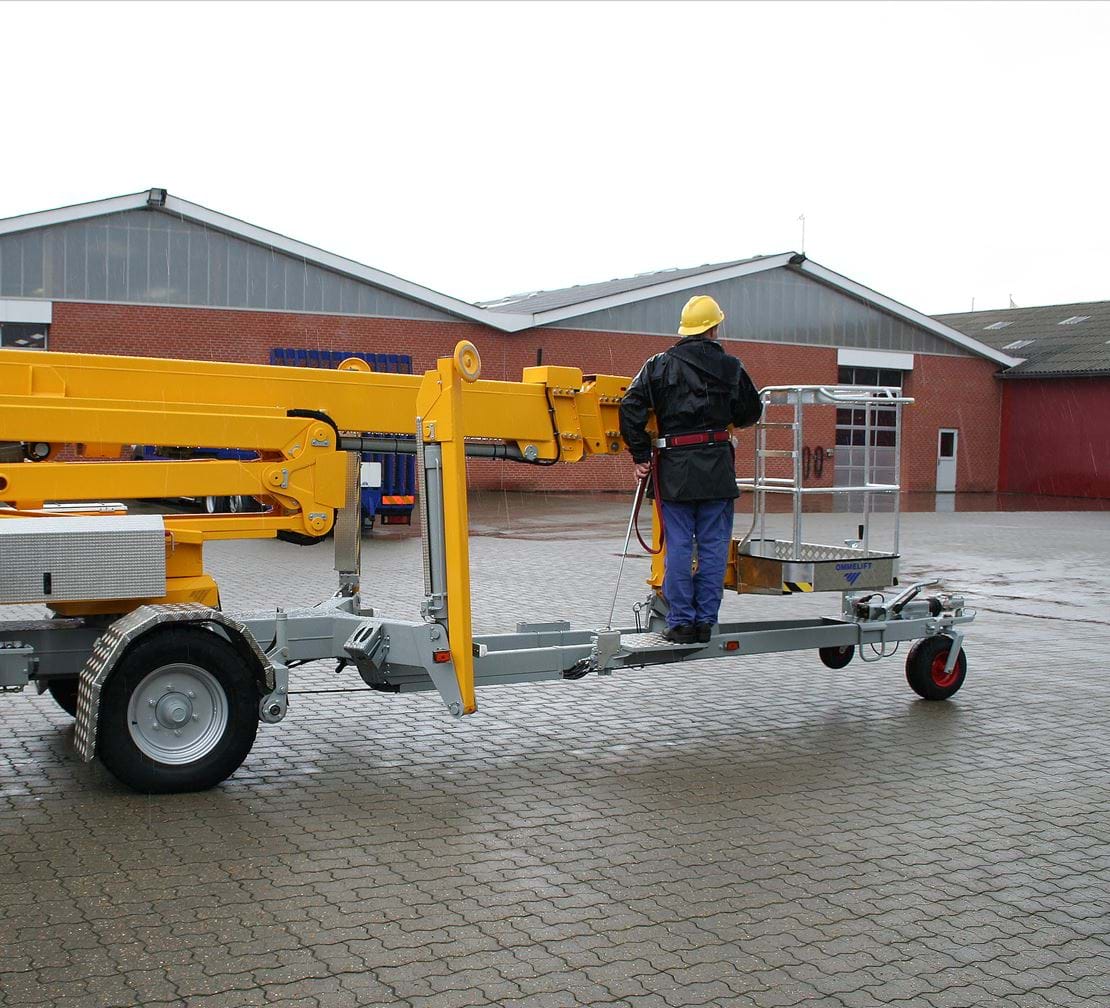

Controls for propulsion - platform

Propulsion is operated from a platform, mounted on the chassis. From the platform there is a good overview, making it possible for the lift to be manoeuvred safely.
Controls for stabilizers

Numbered operational handles for stabilizers. Spirit level for control of horizontal position.

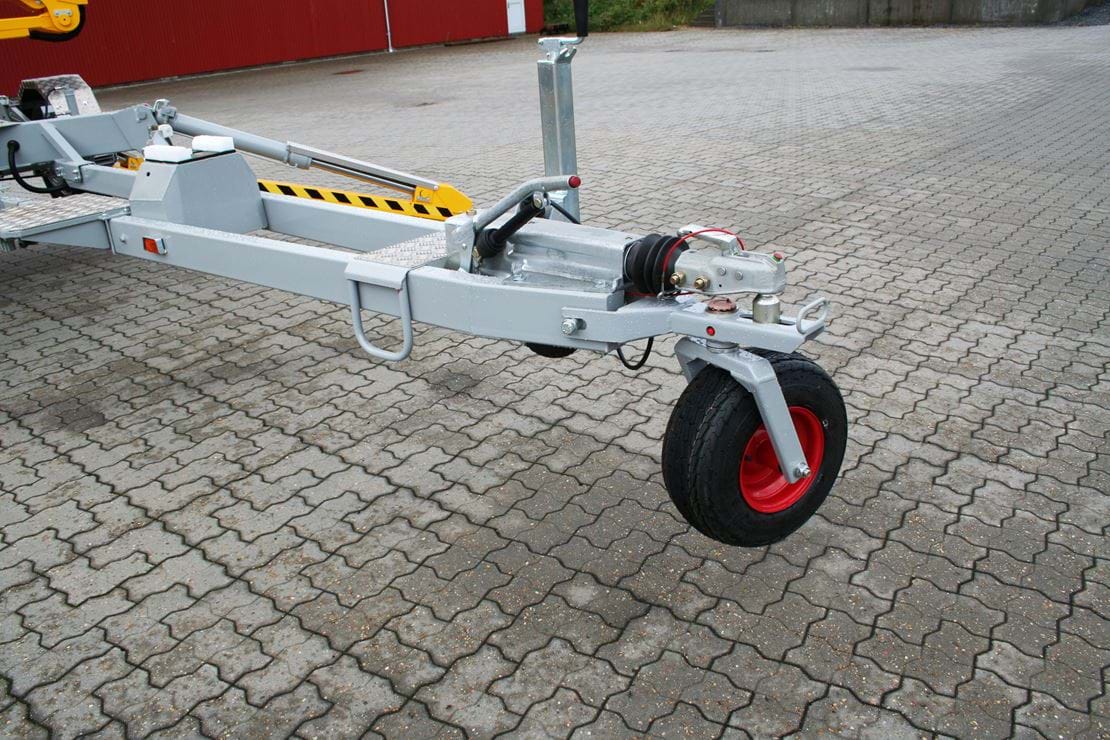

Brakes and jockey wheel

Apart from the overrunning brake the lift is equipped with a reliable parking brake. A strong jockey wheel facilitates the coupling/uncoupling of the lift to the towing vehicle.
Master-slave system

The lift is equipped with a hydraulic master-slave system, enabling the basket always to be held in horizontal position by means of pleasant, sliding movements.
Proportional controls

As standard feature the lift is equipped with proportional controls of the lift movements. By means of a rotary potentiometer the speed can be adjusted continuously in order to ensure as smooth and steady movements as possible.
Safety indicators

Indicators for stabilizer support. At support of all four stabilizers the red LEDs turn off and the green LED turns on. The lift is now ready for operation.
Transport Lock

The lift is equipped with a transport lock, also ensuring that the lift is always placed correctly on the chassis.
Angle boom

Design features include a basket mounting that forms an angle boom mounted to the top boom section and gives increased outreach over roof edges or other obstacles.

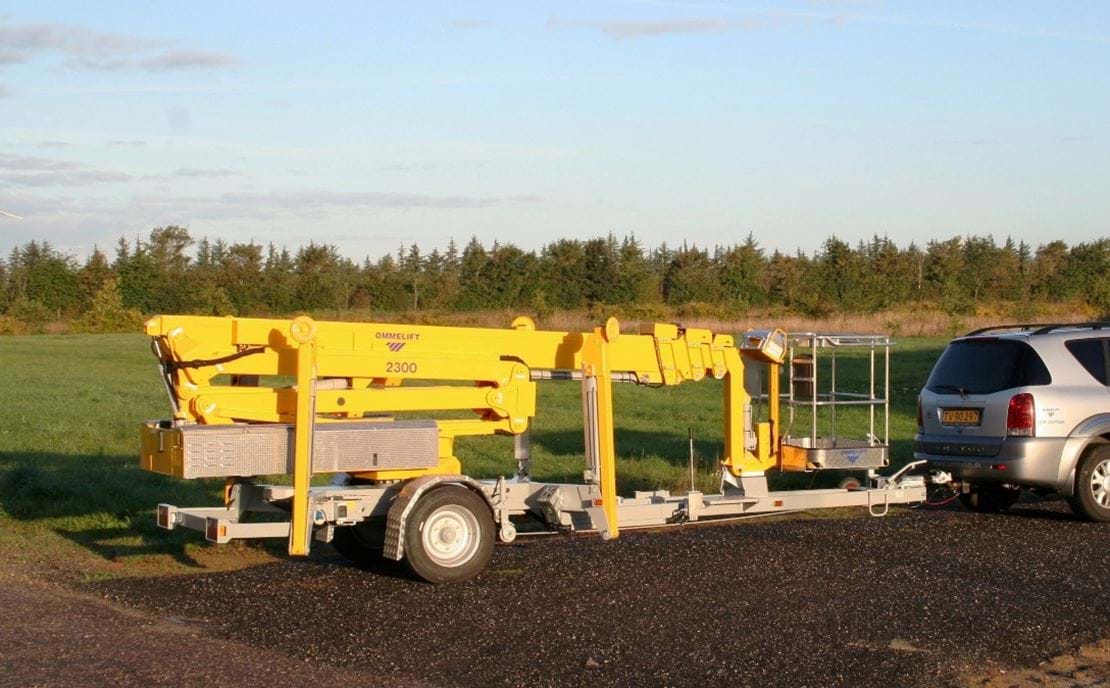

Towed after a vehicle

The lift can be towed after smaller vans and 4X4 pick-ups. The lift is type approved for driving on main roads in e.g. Denmark and Germany.

Flash lights

The lift can be supplied with flash lights on the four stabilizers. If further warning is requested, a flash light can also be mounted on the rear edge of the telescopic boom.

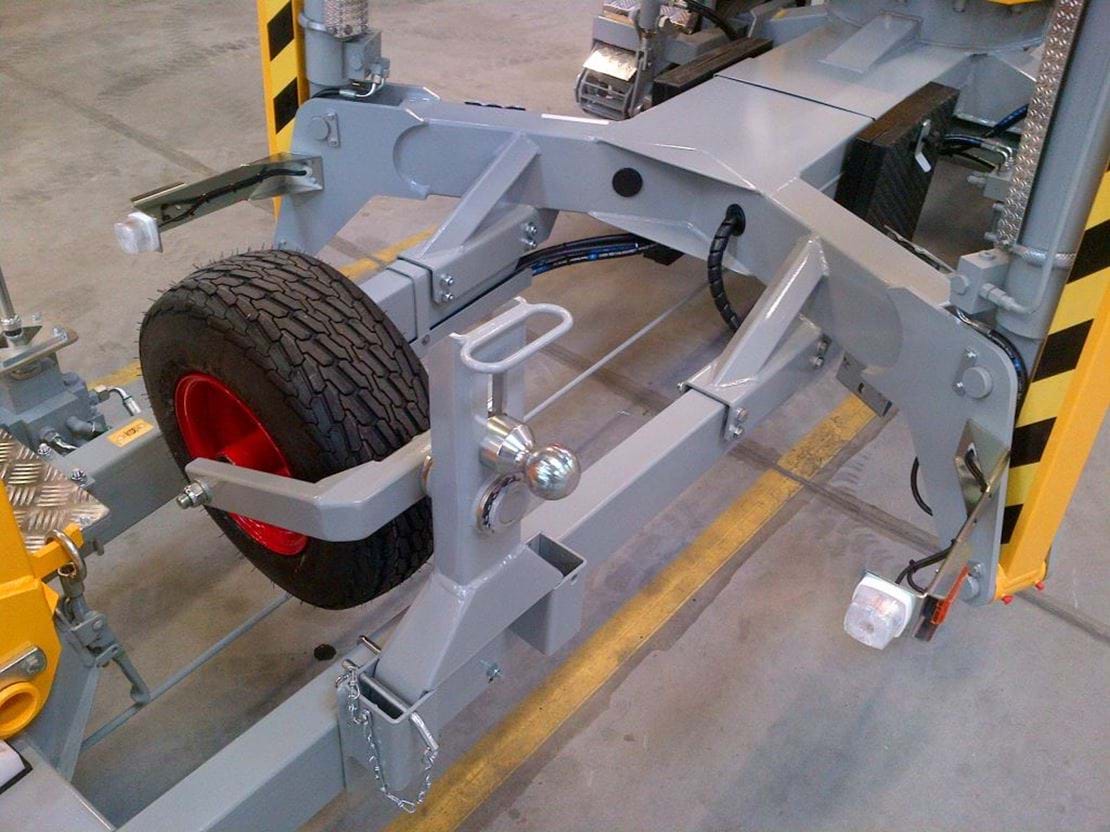

Holder for nose wheel

The lift is supplied with a heavy nose wheel to be used during operation with the propulsion. With the holder there is a fixed place for the nose wheel, when the lift being towed after the vehicle.
Plates for stabilizers

For lift set up on soft ground OMMELIFT offers 4 pcs. of PVC supporting plates. Holders for placing the plates on the lift follow together with the plates. The dimensions of the plates are 400x400 mm
Hatz diesel engine with oil pump

The lift can be equipped with a Hatz diesel engine for alternative continuous operation. On specific engine types start and stop of the engine can also take place from the basket.
Dobbelt charger system with boost effect

The extra boost effect will give continuous operation for the whole day when connected to 230V. If the Batteries have been emptied you just connect 230 V and after 15 min. of charging, you can use the lift close to continuously the rest of the day.
