4200 RJ

4200 RJ

  • True hybrid
  • Compact dimensions

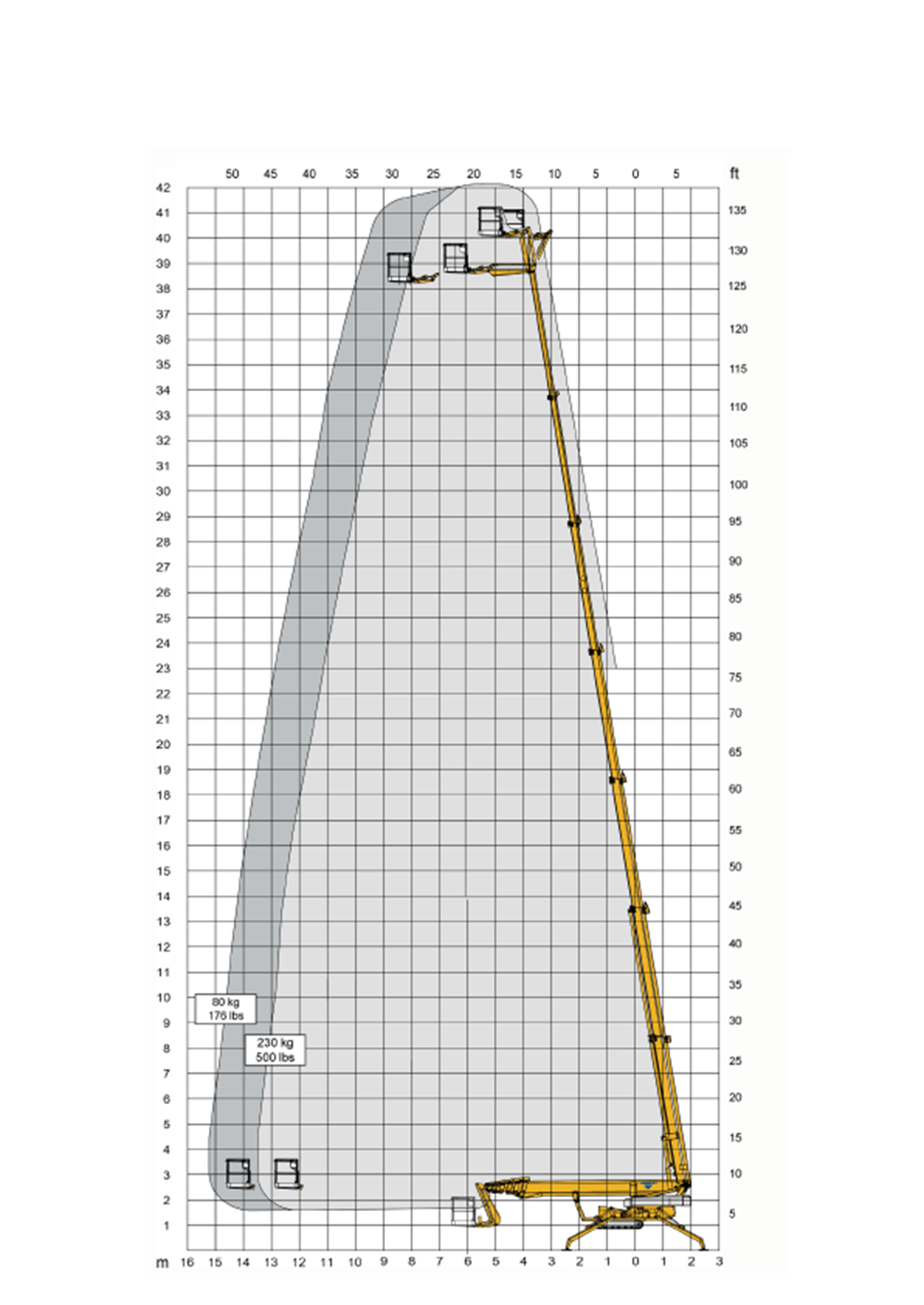

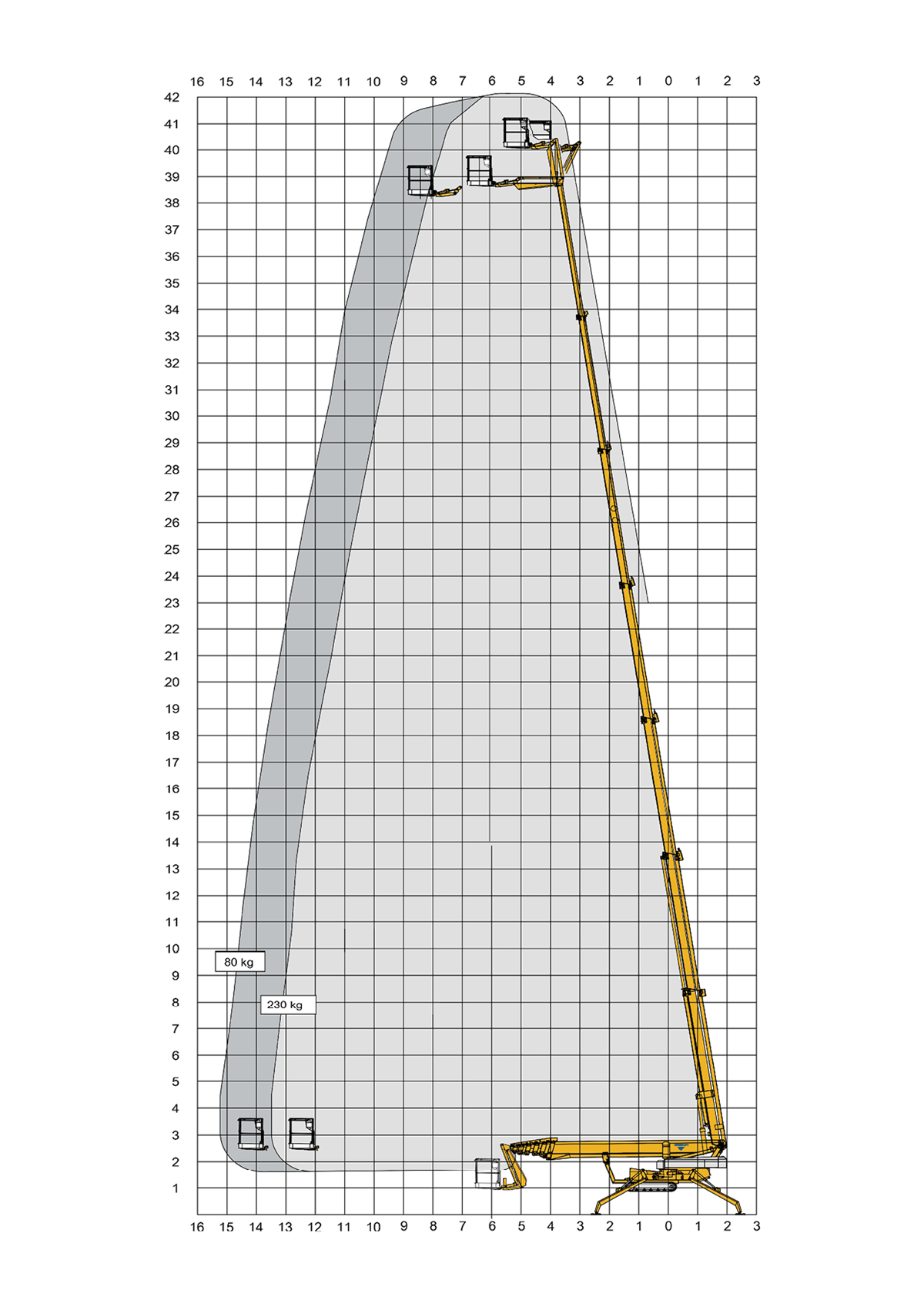

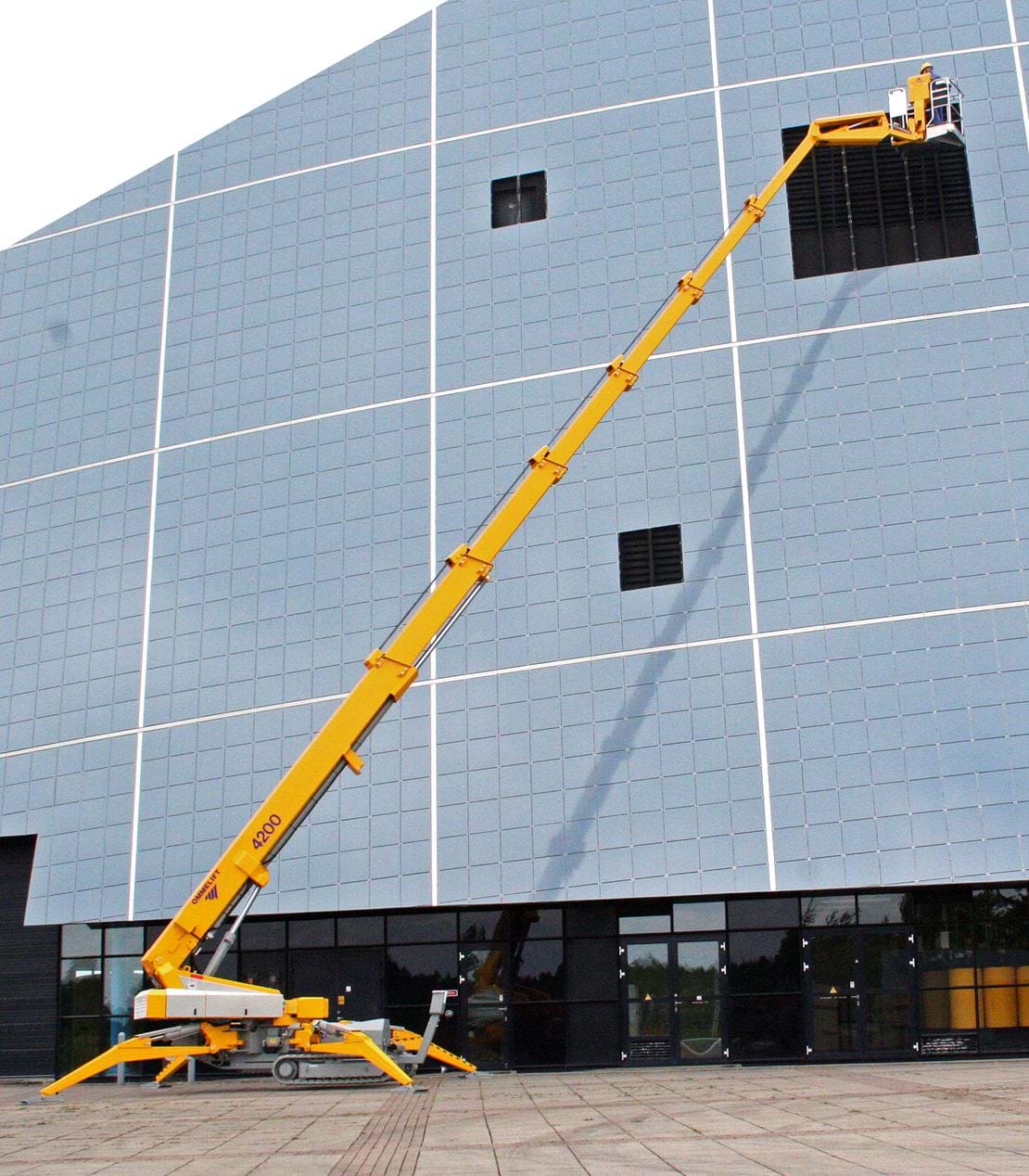

  • High and extensive reach
  • Low weight

The diesel and battery hybrid power pack makes the lift equally efficient in outdoor as in indoor environments.

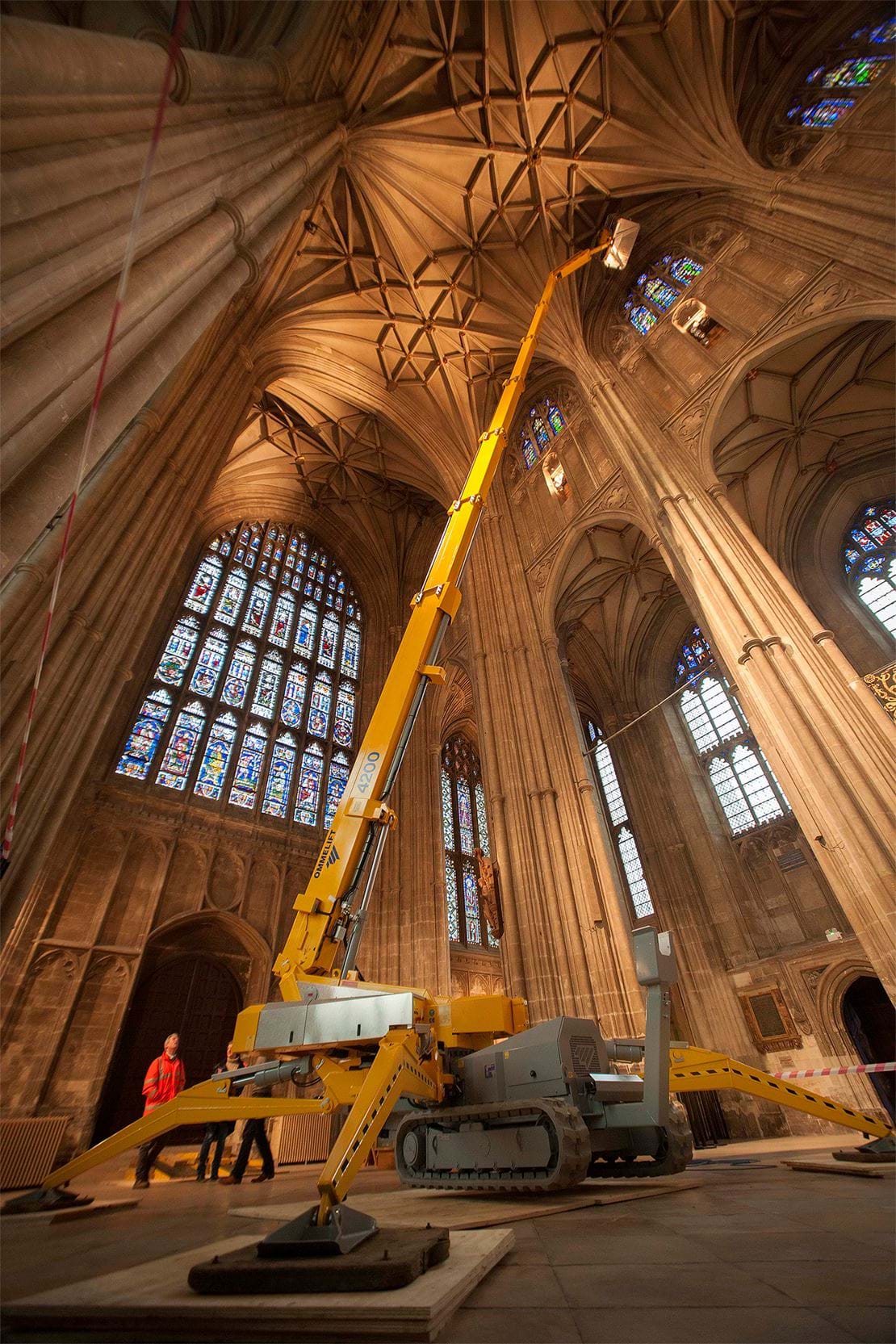

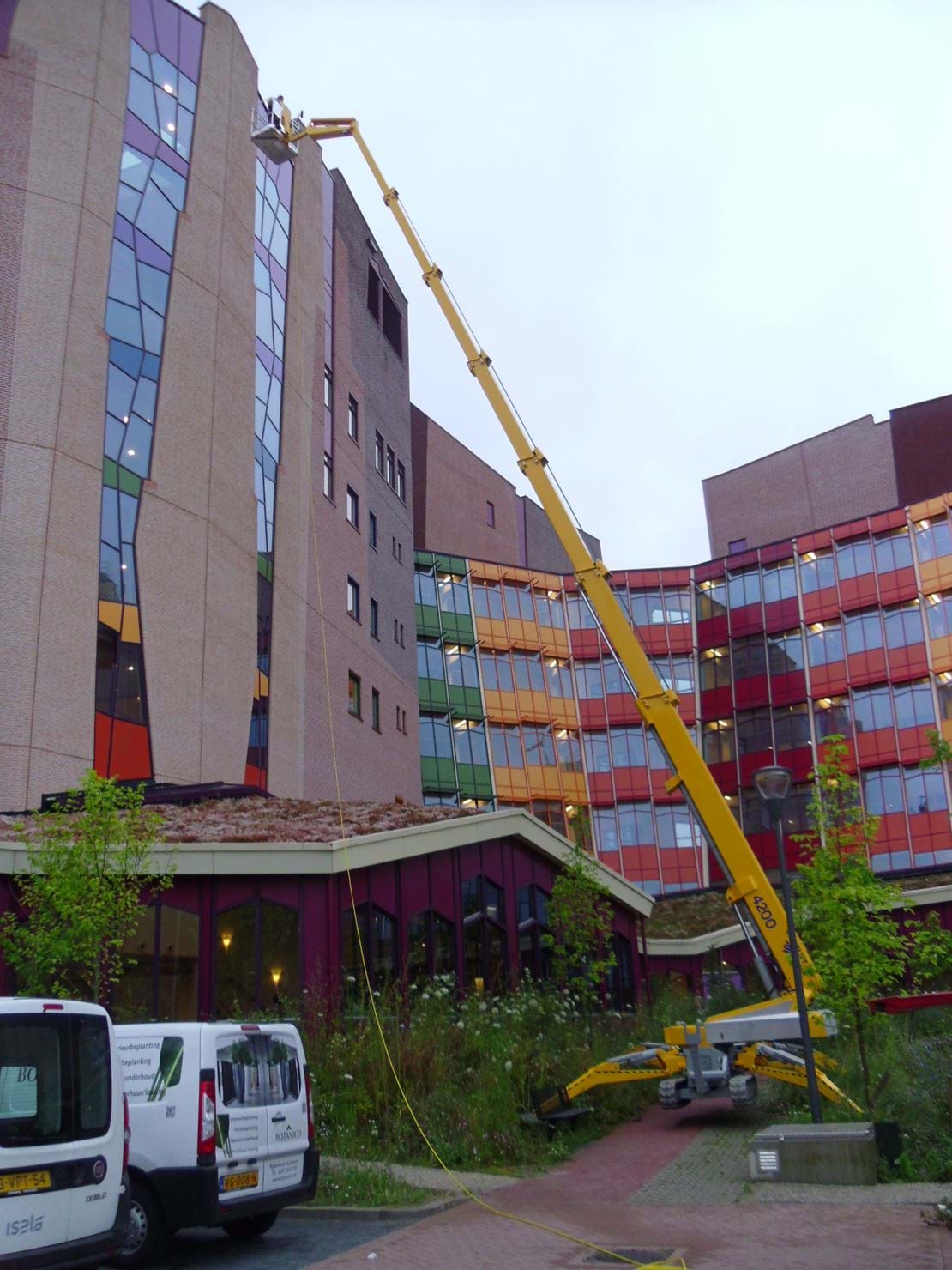

At outdoor operation the diesel engine is the natural choice. When working indoor the electronic motors powered by 8 high capacity batteries are the motive force. No annoying and hazardous extension cords connected to mains are needed when travelling inside e.g. atriums. The rapid 2-gear undercarriage is quickly in position with an amazing speed and turning strength.

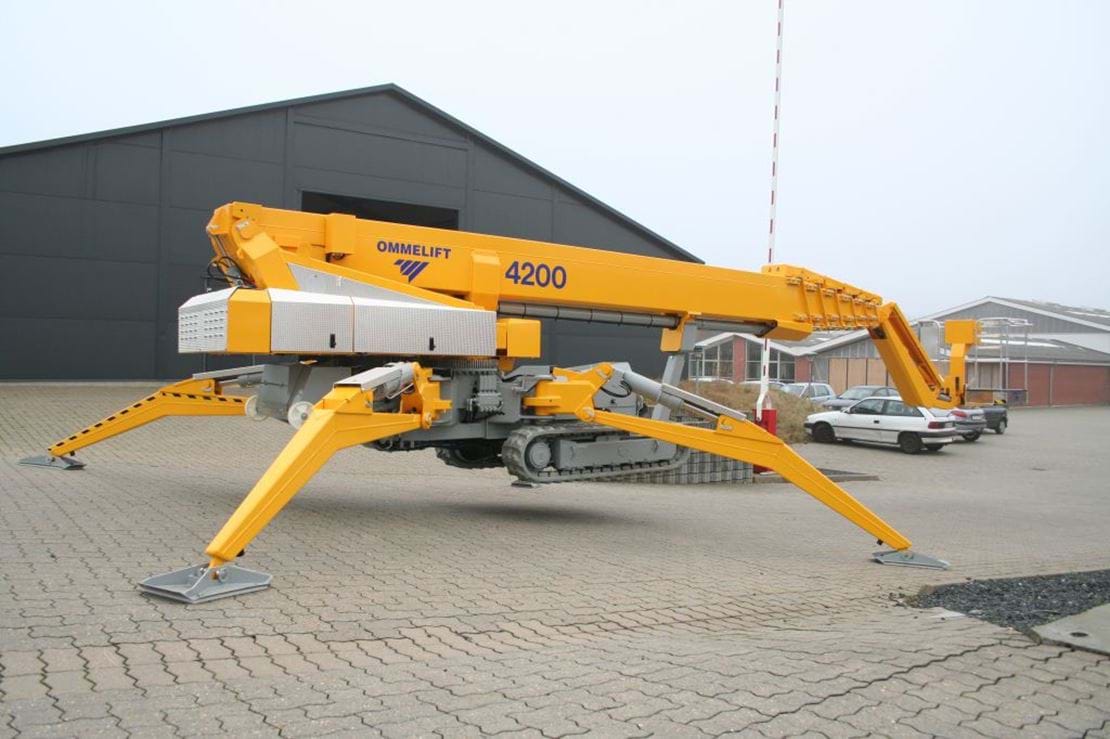

The Omme Lift 4200 RBDJ is designed to traverse hilly terrain but the crawler chassis is also dispersing the machine's weight of only 6900 kg (15,212 lbs) widely when travelling on delicate surfaces like pavements, lawns, marble or similar. Generally in connection with applications where high and extensive reach is required but low weight a necessity.

The up to 27% set-up ability provides operation on levels where self-propelled booms are unfit to work due to too steep inclines. Or maybe a 40m (ft 131') self-propelled boom weighing 20.000kg (44,000 lbs) is just too big and heavy to use.

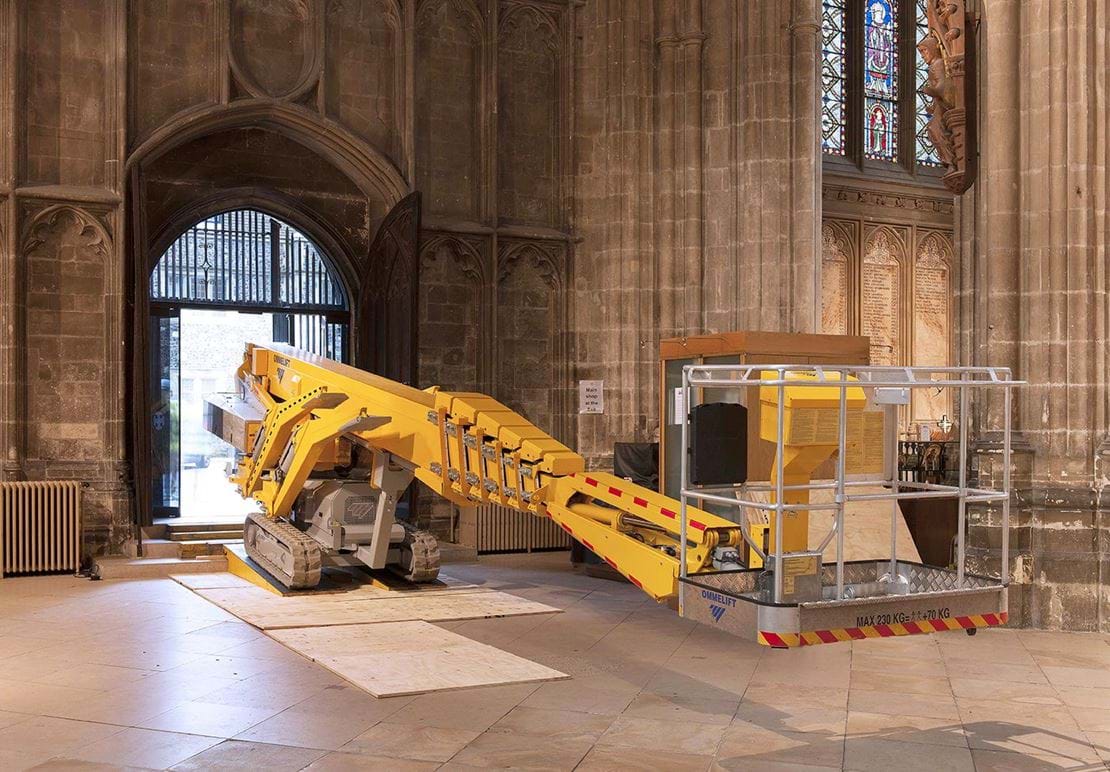

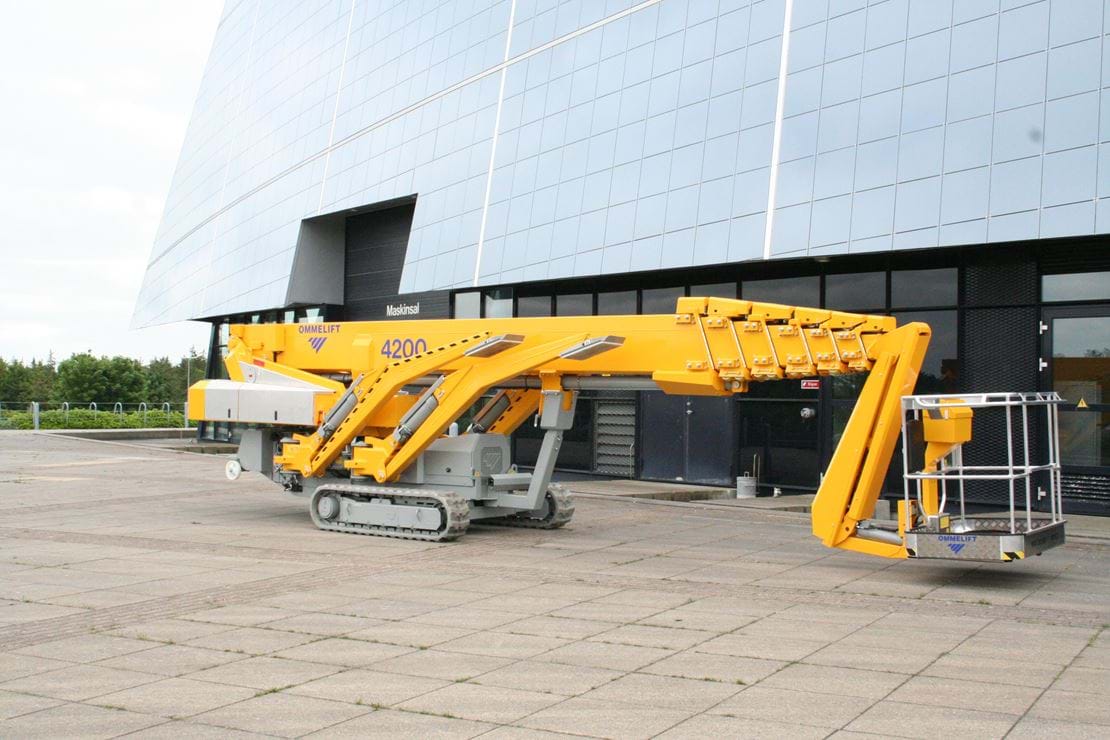

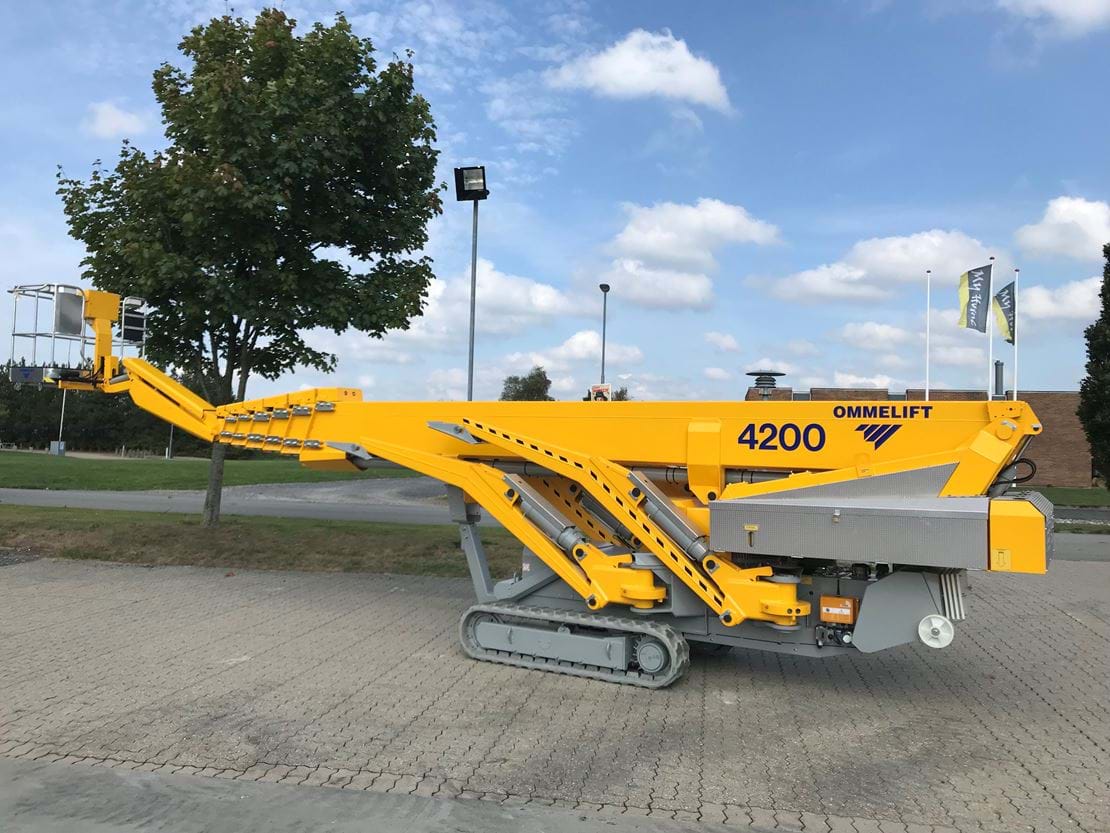

Compact dimensions allow access into tight areas. The height is 1.99 m (ft 6'6''). The length is 8.90 m (ft 29'2'') and the detachable basket makes it possible to reduce the length even further. A width of 1.75 m (ft 5'8'') can be retracted hydraulically to only 1.35 m (ft 4'5'').
