2750 RJ
- True Hybrid
- Robust and powerful
- Precise operation
- Simple, intuitive controls
Type 2750 RJ and 2750 RBDJ are identical apart from the power sources. Standard features include hydraulic stabilizers, turnable basket and proportional controls. The adjustable stabilizer spread provides substantial reduction in operational width. The basket mounting that forms a "fly" boom mounted to the top boom section gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being short in travelling length the platform is extremely manoeuvrable in narrow places. The self-propulsion system is electronically operated by proportional levers comfortably placed in a light weight mobile control box.

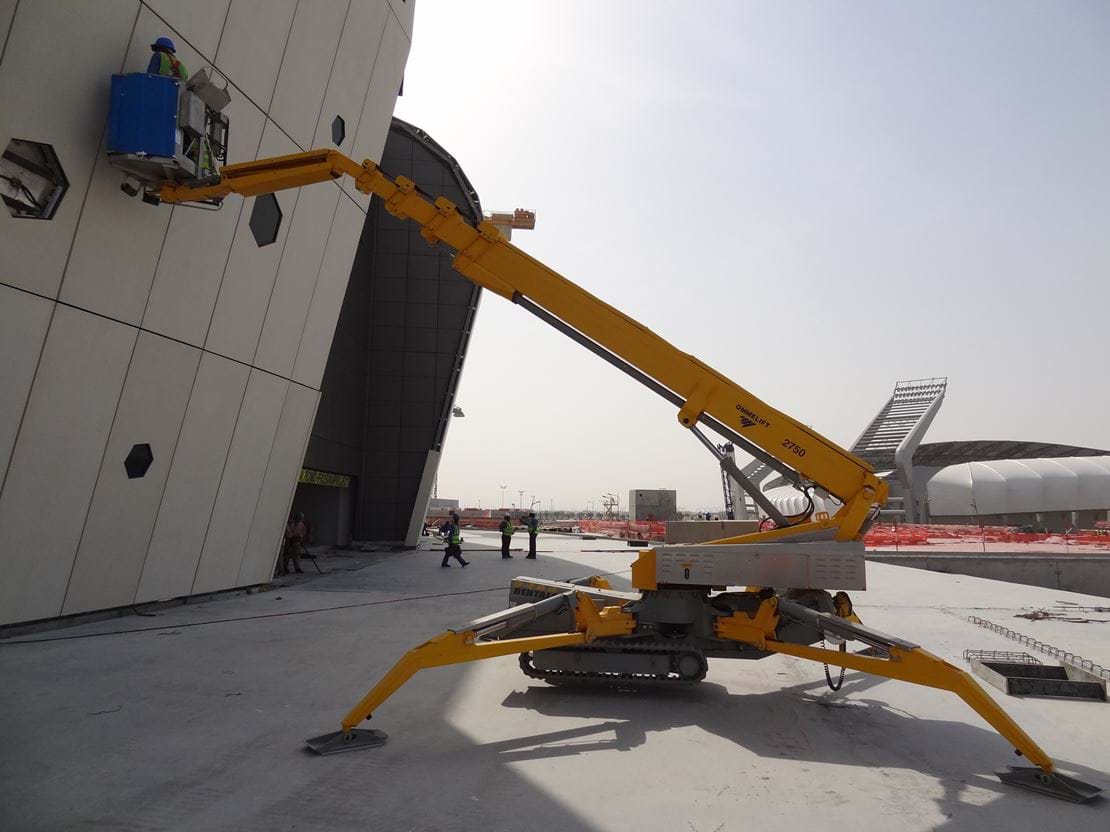

Crawlers at work:

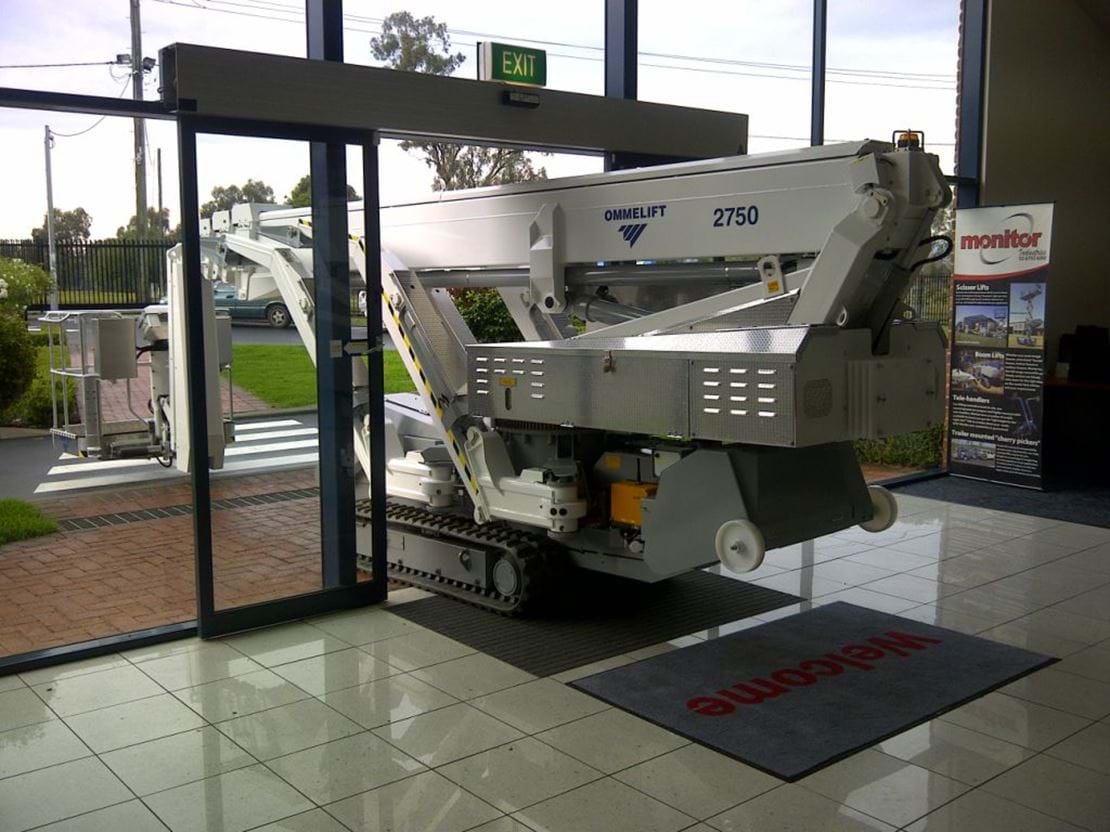

2750 RJ is powered by a heavy duty 24 v battery pack. In order to accomodate extreme and long term usage a transformer for direct mains connection is included. This type is especially suited for indoor operation.

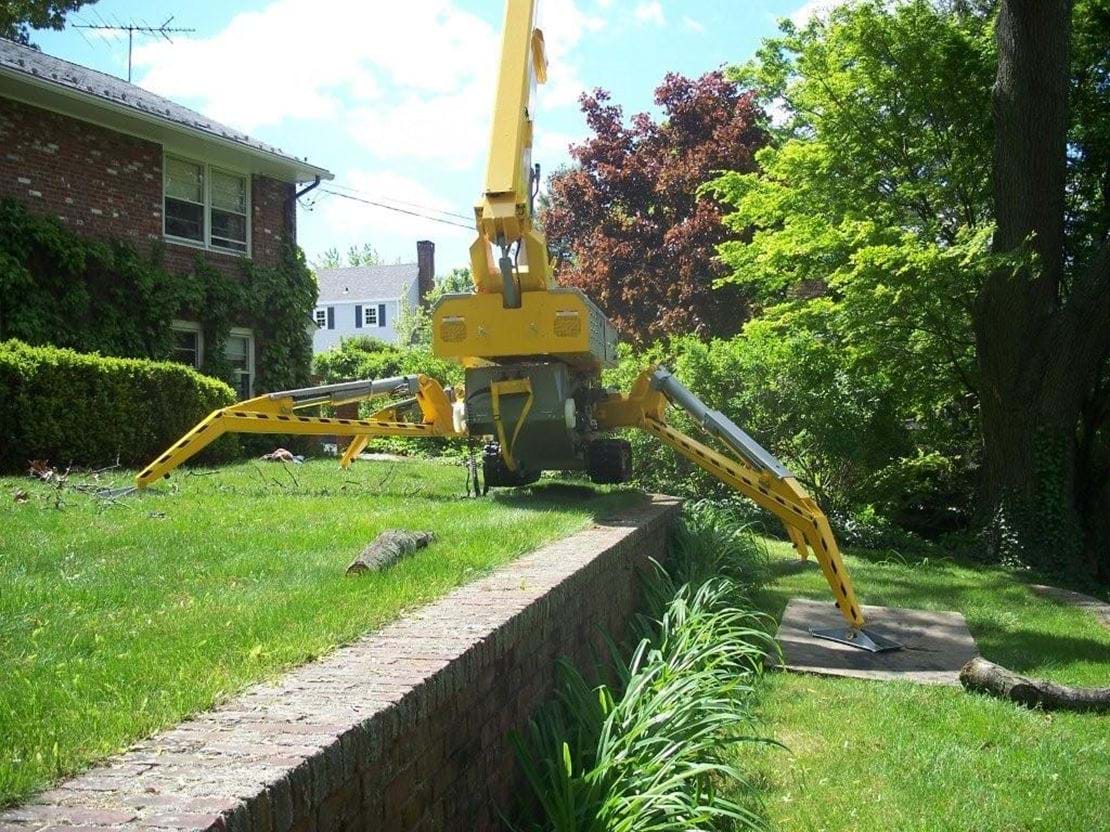

2750 RBDJ is a battery and diesel engine bi-energy unit. This type is therefore suited for both indoor and outdoor usage. The diesel power pack provides an incredible gradeability of remarkable 35%, equivalent to 19.3°, an environment where lift deployment is also possible. Underlining the general stability is the easy self-propulsion manoeuvrability across a 25% (14°) slope. Combined with the strong, non-skid crawler belts this lift type is indeed go anywhere access.
Contact form
In order to respond to your request we need your contact information. Please complete the fields below.
Type
2750 RBJ Battery
2750 RBDJ Hybrid

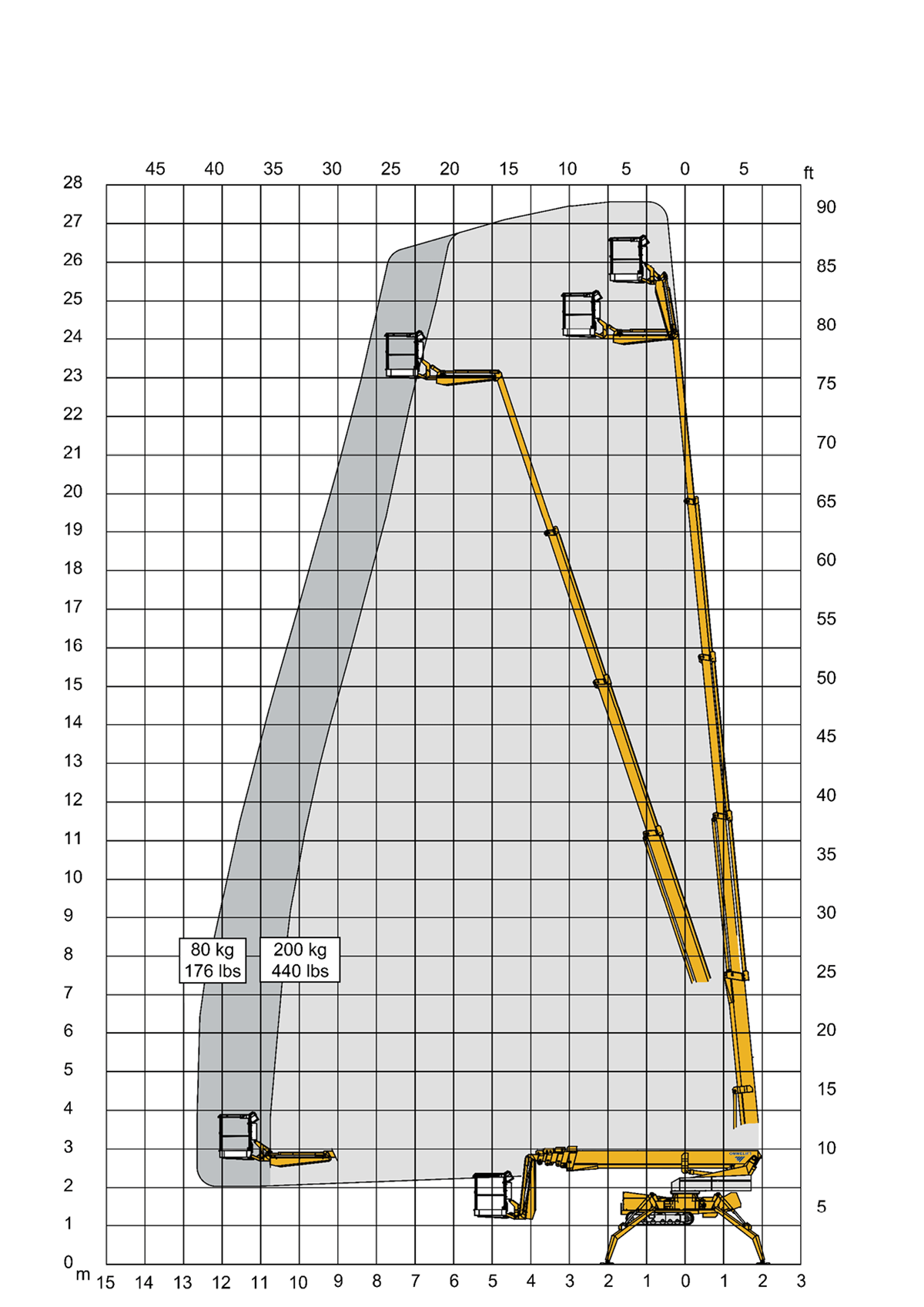

Max. working height
Max. outreach
Max. basket load
Basket size
Basket rotation ±
Turret rotation ±
Travelling length
Travelling height
Travelling width
Operational width
Battery
Charger
Diesel engine
Generator
Total weight
Gradeability, max. across slope up to
Gradeability, max. up and down slope
Deployment ability on slopes up to
Brochure download
- Danish
- Dutch
- English Imperial
- English Metric
- Finnish
- French
- German
- Polish
- Litauen - Jomasta
- Polen - HDW Polska sp. z o.o.
- Australia - Monitor Industries Pty Ltd
- Austria - SAHALIFT GmbH
- Belgium - Heli NV
- Canada - Tracked Lifts LLC
- China - Beijing Xinyazhong Co. Ltd
- Czech Republic - STATECH s.r.o.
- Denmark - OMMELIFT A/S
- Estonia - Liftest OÜ
- Finland - Talhu Oy
- France - All Road
- Germany - Sahalift GmbH
- Hong Kong - Avion Access Company Limited
- Indonesia - PT. Jebsen & Jessen Technology Indonesia
- Iraq - DIB - Deutsch-Irakisches Büro
- Kingdom of Bahrain - Gulf Equipment & Technology
- Kuwait - Gulf Group Co.
- Malaysia - Jebsen & Jessen Malaysia Sdn Bhd
- Netherlands - Kors Hoogwerksystemen BV
- Norge - Aadalen Truck AS
- Nouvelle-Calédonie - CIPAC Industries
- Oman - Teejan Equipment LLC
- Pakistan - KK Power
- Philippines - Jebsen & Jessen Technology Philippines Inc.
- Portugal - Transporel, LDA.
- Qatar - Q-FAB
- Saudi Arabia - MASA Equipment Company
- Singapore - Jebsen & Jessen Singapore Pte. Ltd.
- Slovakia - mateco Slovakia s.r.o.
- Slovenia - MHM d.o.o.
- Sverige - A.Ådalen AB
- Switzerland - Sahalift GmbH
- Thailand - Jebsen & Jessen (Thailand) Ltd.
- Turkey - Acarlar Dis Ticaret Ve Makina Sanayi A.S.
- UAE - Al Laith International
- USA - Tracked Lifts LLC
- Vietnam - Jebsen & Jessen Ingredients Vietnam Company Limited
- Other
-
Battery/Diesel Hybrid Power
Travel long distances on engine power and use battery power indoor or where quiet or no fumes operation is required. Optimum versatility and unrestricted operating periods with a true hybrid system. Battery power eliminates the well-known ‘voltage drop’ issue, which can significantly impede the operation of a mains-powered machine. Battery power provides faster lift operation and self-drive without inconvenient trailing connection to mains. Moreover, power cuts or local voltage fluctuations do not have an influence on a battery powered lift performance
-
The True Hybrid System (not bi-energy only)
A true hybrid means optimal power source utilization. The batteries are automatically re-charged when the engine is on. Engine stop accommodates automatic change from engine to battery power and vice versa. Furthermore, continuous recharge of the battery pack is also possible with an on-board charger during lift operation. The charger does not disconnect when the lift is in use
-
The Stick Boom Advantage

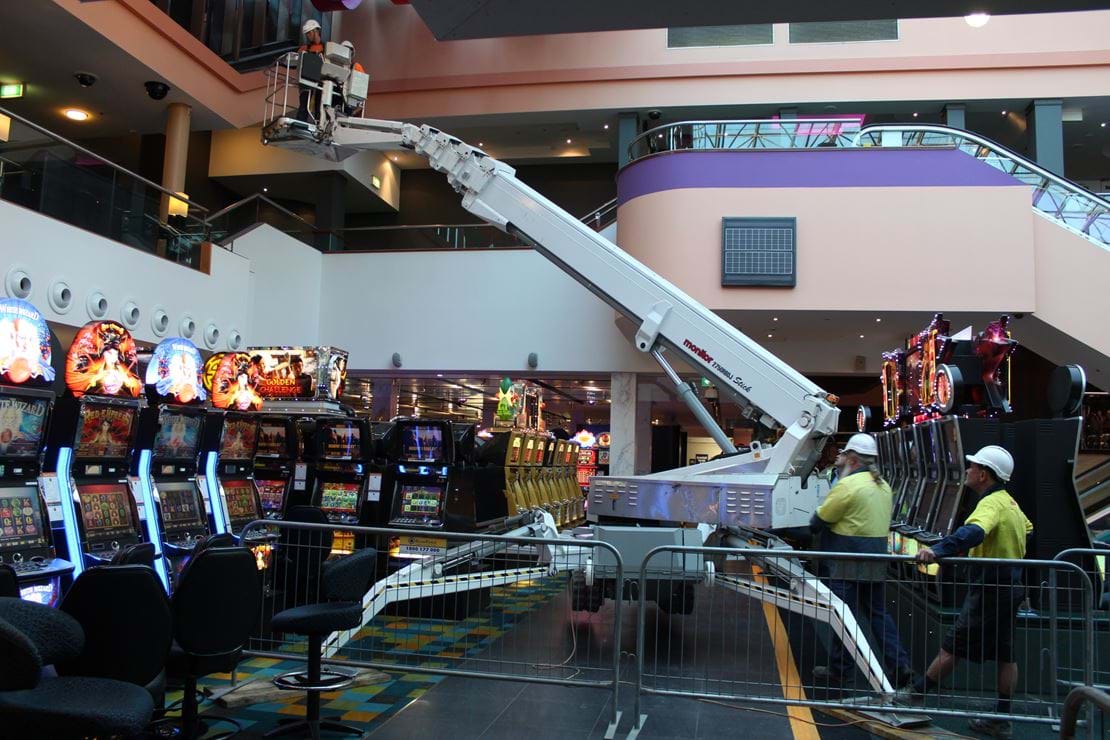

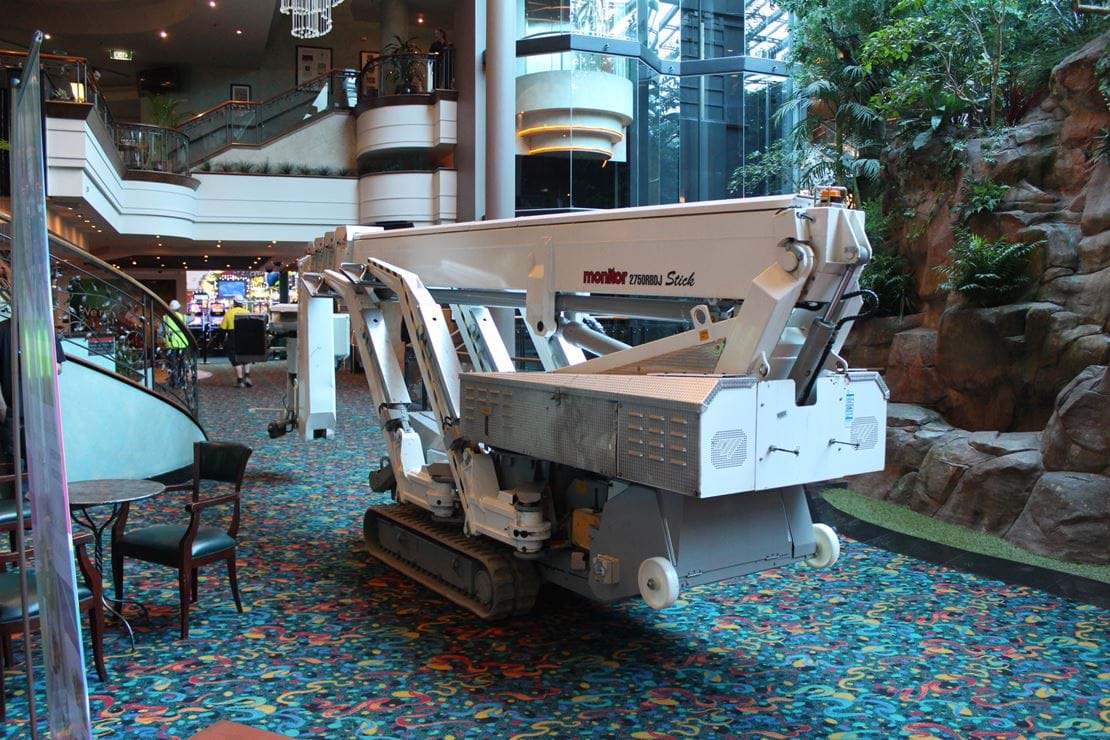

The telescopic boom is ideal for indoor use in malls or the like as there is no knuckle hence tail-swing to inflict damage on decor, lighting, information boards etc., typically hanging inside a shopping centre or an atrium. It is also perfect for maintenance jobs on building’s facades in city centres which many times have a similar environment. The straight stick can hit the job directly and exempts the operator from being uneasy when rotating the lift
-
Superior Angle of Deployment
Deployment ability up to 40%. Long-travel stabilizer legs allow safe set-up on extreme slopes and in the most difficult situations
-
Stabilizer Indicators Inform Safe Set-up
Sensors on stabilizers and pal locks with separate L.E.D indicators and an audible alarm provide safe deployment.
-
Ability to Lift the Boom and the Jib While Travelling
This allows the operator to clear obstacles when driving and make a clean approach to an uphill/downhill slope without grounding
-
Flush mounted basket on jib
No bulky fixture underneath the basket which can inflict damage on buildings/rooftops or interior decoration
-
Detachable Basket with Casters
Cuts overall length and increases transit compactness. Casters on basket for easy handling.
-
Telescopic Sections on Rollers
No slide pad friction in telescopic movements. Same operation speed with full basket load in all positions. Brushes on entrances prevent sprigs, twigs or other fragments to enter sections
-
Large and Grease Free Steel Boom Sections
Grease-free sections minimize build-up of sawdust, dirt or similar between sections giving increased reliability and reduced maintenance
-
Telescopic Boom Cylinder Situated Underneath Main Boom
The telescopic cylinder is protected under the boom and not exposed on top hence not subject to impact of falling objects and damage from collision
-
Permanently Fixed, Large Bearing-Area Stabilizer Foot Plates
For fast, safe set-up and extra stability even when separate spreader pads are not utilized
-
Sliding Hinged with Purpose Designed Anti-Scratch Boards
Reduces friction on vulnerable surfaces and furnishes a smooth set-up on e.g. marble or similar
-
Robustly Built
-
Extensively Shielded
-
Tool Trays in Basket
-
Power Outlet in Basket
-
Hatch for easy cleaning
-
Double Battery Capacity
O6 2 x (4 x 6V) 400Ah/5h
-
Double Charger System with Boost Effect (230V only)
O10 When connected to 230V mains, the 2-charger system provides unlimited lift operation and re-charge of battery pack simultaneously.
Boost effect: boosts output and gives powerful assistance to lift operation and battery re-charge.
A second charger can be fitted on most existing units.
-
1-man basket

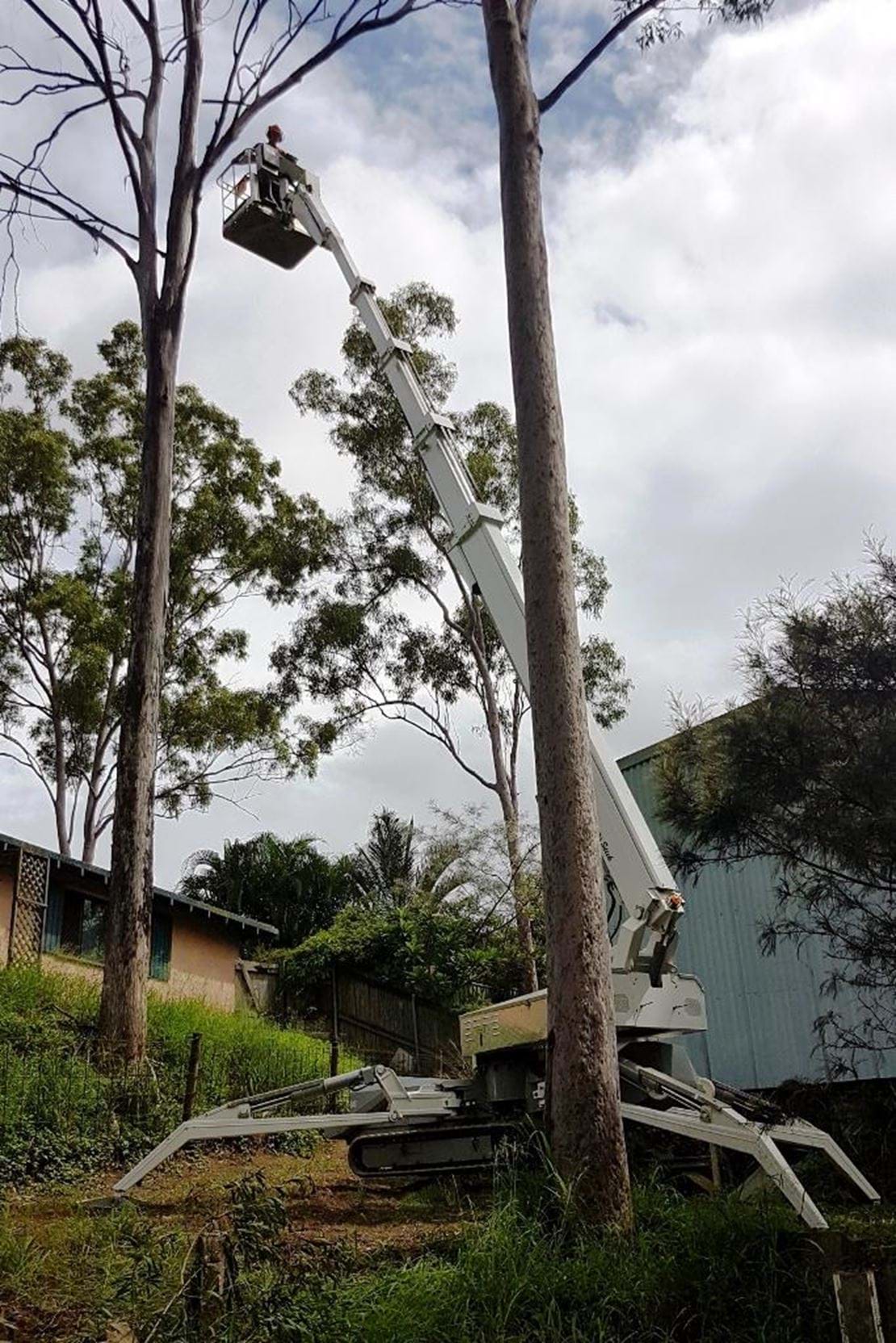

O13(b,c) To work in tree canopies and confined spaces.
-
Work Light in Basket
O16
-
Special Colour RAL
O22 For an additional price the lift can according to agreement be painted in other RAL-colours.
-
Non-Marking Tracks
O26
-
Variable Width Undercarriage
O27 The variable width provides safe travel and gives an excellent stability when driving on slopes. The narrow width ensures optimal manoeuvrability when operating in confined spaces.
-
Flashing Beacons on Stabilizers
O39 The lift can be supplied with flash lights on the four stabilizers. If further warning is requested, a flash light can also be mounted on the rear edge of the telescopic boom.
-
Hose to Basket
O41
-
Wireless Drive
042 The lift can be equipped with Wireless Drive
-
Automatic Levelling
O45
-
Wireless Drive and Automatic Levelling
O45b Wireless Drive with automatic levelling.
-
Battery discharge indicator and time counter on electric motor
O57 Battery discharge indicator and hour meter on elec. motor
